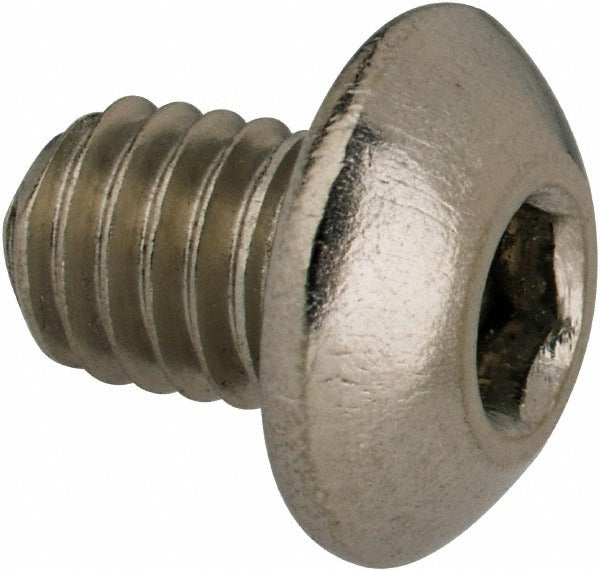

Value Collection 3TSBS10F004 Button Cap Screw 10-32

Product Description

The VALUE COLLECTION 3TSBS10F004 is a 10-32 button socket cap screw designed for applications requiring a low-profile fastener head with reliable clamping strength. Machined from 316 stainless steel with a bright, uncoated finish, this screw offers strong corrosion resistance in wet, marine, and chemical-exposure environments. The hex socket drive accepts a 1/8-inch hex key for installation in confined spaces where a standard hex head wrench cannot reach. At 0.25 inches length under head, this fastener suits thin-material assemblies, sheet metal, and precision equipment panels. Thread class 3A provides a close-tolerance fit consistent with ANSI/ASME B18.3 and ASTM F837 standards.

This screw is suited for use in marine hardware, food-processing equipment, pharmaceutical machinery, and any installation environment where corrosion resistance and a flush, snag-free head profile are required. The UNF thread standard makes it compatible with fine-thread tapped holes in metal components. Electricians, millwrights, equipment fabricators, and industrial maintenance technicians typically use this fastener when assembling enclosures, brackets, and structural panels that demand a tamper-resistant, low-profile cap screw with stainless corrosion resistance.

Key Features

• 316 stainless steel construction for superior corrosion resistance in harsh and marine environments
• Button head profile at 0.101 inches head height provides a low-profile, snag-free surface finish
• 1/8-inch hex socket drive allows installation in tight or recessed locations
• 10-32 UNF thread with 3A fit class ensures close-tolerance engagement in fine-thread tapped holes
• Bright, uncoated finish — no plating that can chip, flake, or introduce contamination
• Meets ANSI/ASME B18.3 and ASTM F837 fastener standards

Compatibility

Designed as a direct-fit fastener for 10-32 UNF fine-thread tapped holes requiring a button socket cap screw per ANSI/ASME B18.3. Suitable for use in any assembly specifying a 316 stainless steel, class 3A, right-hand thread cap screw at 0.25 inches length under head.

Installation Notes

Install using a 1/8-inch hex key or matching hex socket bit driver. Ensure the mating tapped hole is clean and free of debris before threading to avoid cross-threading in the close-tolerance 3A fit. Torque to the value specified in the applicable assembly drawing or engineering standard for 10-32 stainless hardware. When working in corrosive or food-grade environments, avoid mixing with carbon steel fasteners to prevent galvanic contamination.
