Value Collection 395-2336 Keyway Broach Style E-1 18 Mm Hss

Product Description

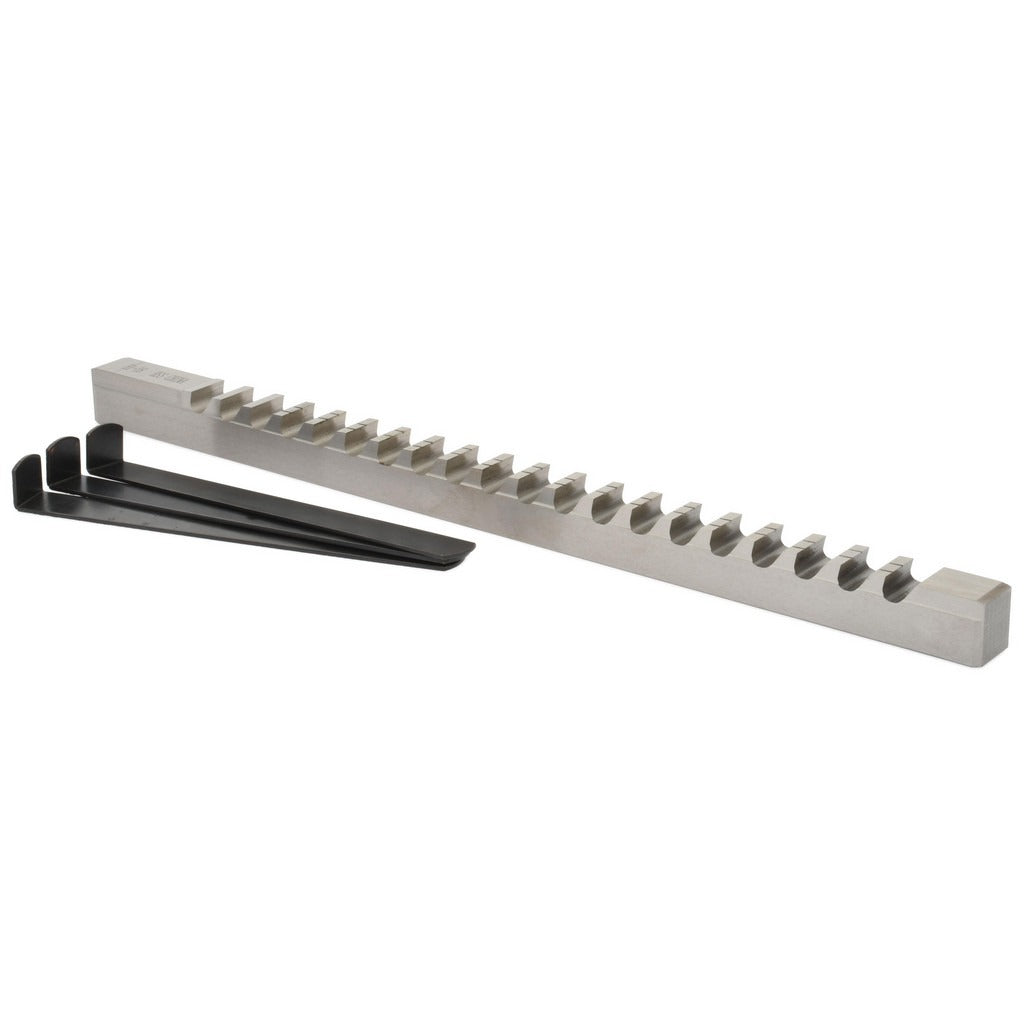

The VALUE COLLECTION 395-2336 is a Style E-1 keyway broach machined from high speed steel for cutting 18 mm keyways in ferrous and non-ferrous metal workpieces. The broach measures 15.5 inches overall length with a 0.75 inch body width and supports a cutting length range of 1 to 6 inches, making it suitable for through-bores and stepped bores within that depth window. With 20 teeth at a 5/8 inch tooth pitch and a keyway width tolerance of 0.7092 inches, this broach delivers repeatable, precise keyway geometry. Three shims are required for use and must be present during operation. Installation is performed by machinists or tool-and-die professionals using an arbor press or broaching machine.

This broach is suited for production and maintenance machining applications where 18 mm keyways must be cut into hubs, gears, pulleys, sprockets, and similar bored components. It is compatible with the standard 18x11 millimeter key size. Typical use cases include repair and fabrication work in industrial, manufacturing, and mechanical maintenance environments where consistent keyway dimensions are required across ferrous and non-ferrous materials.

Key Features

• Style E-1 broach geometry for 18 mm keyway cutting
• High speed steel construction handles both ferrous and non-ferrous metals
• 20-tooth cutting profile at 5/8 inch tooth pitch for controlled stock removal
• Cutting length range of 1 to 6 inches accommodates varied bore depths
• Bright finish with keyway width tolerance of 0.7092 inches for dimensional consistency
• Compatible with standard 18x11 mm metric key size

Compatibility

Designed for use with standard arbor press or broaching machine setups where an 18x11 mm metric keyway is required. Three shims are required for proper operation; confirm shim availability before beginning the cut.

Installation Notes

This broach is installed and operated by machinists using an arbor press or dedicated broaching machine — hand operation is not appropriate. Secure the workpiece firmly in a fixture or vise before broaching to prevent movement during the cutting stroke. Confirm that the correct number of shims are in place before applying press force, as missing shims will result in an undersized keyway or tool damage. Apply cutting fluid appropriate for the workpiece material throughout the operation.
