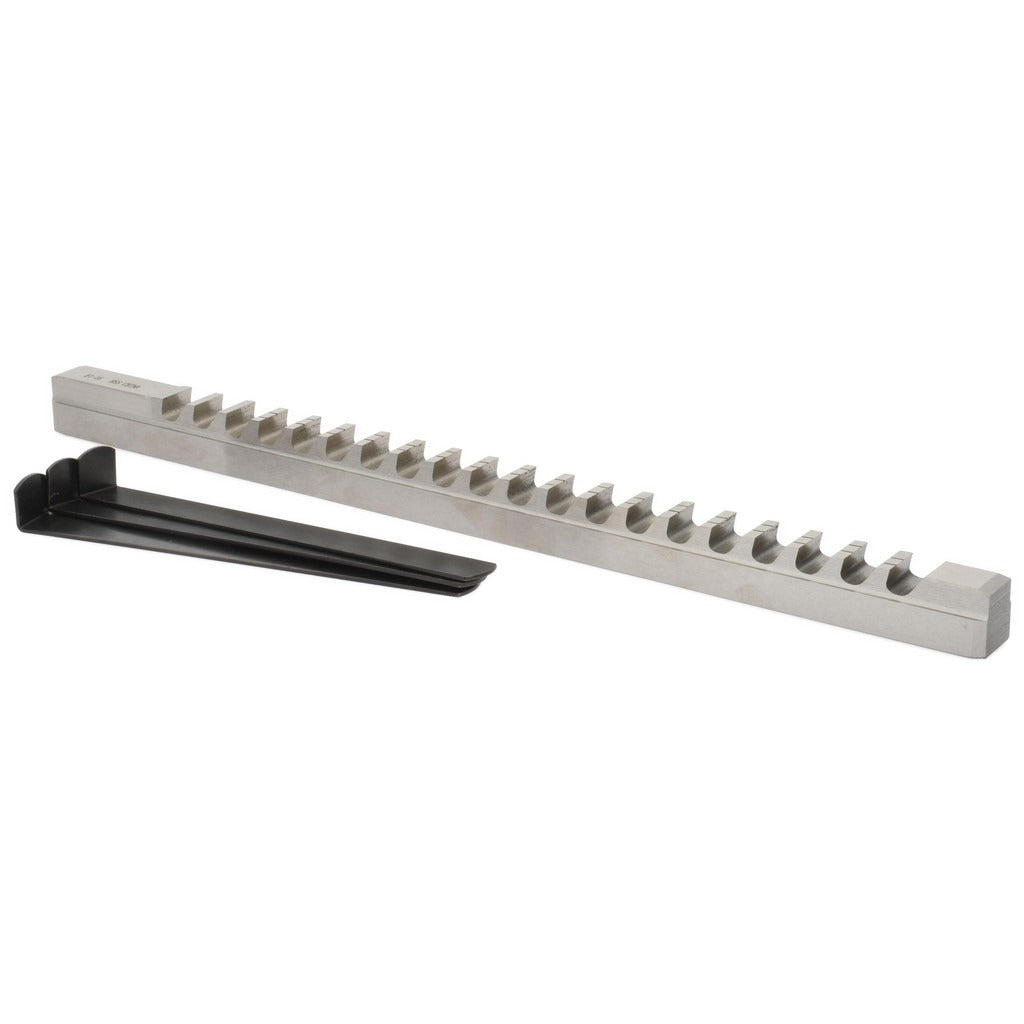

Value Collection 395-2332 Keyway Broach Style E-1 16 Mm Hss

Product Description

The VALUE COLLECTION 395-2332 is a Style E-1 keyway broach designed for cutting 16 mm keyways in ferrous and non-ferrous metal workpieces. Manufactured from high speed steel (HSS) with a bright finish, this broach delivers clean, accurate keyway slots across a cutting length range of 1 to 6 inches. The tool measures 15.5 inches overall length with a 0.75 inch body width, and requires 3 shims to achieve the full depth progression across successive passes. With 20 teeth at a 0.625 inch tooth pitch and a keyway width tolerance of 0.6304, the 395-2332 is suited for precision machining operations performed by machinists and toolroom professionals.

This keyway broach is used in machine shop and toolroom environments where internal keyways must be cut to metric key size standards. The Style E-1 configuration is compatible with standard broaching presses and arbor press setups. The 16 mm by 10 mm standard metric key size compatibility makes this tool applicable to shaft and hub keyway cutting operations in both production and maintenance machining contexts. It is appropriate for use on a range of ferrous and non-ferrous metal components.

Key Features

• Style E-1 broach configuration for standard arbor press or broaching press use
• High speed steel construction for durability across ferrous and non-ferrous materials
• Cuts 16 mm keyways with 1 to 6 inch cutting length range
• 20 teeth at 0.625 inch tooth pitch for controlled, progressive material removal
• Requires 3 shims for full depth progression
• Bright finish for corrosion resistance during storage and use

Compatibility

Designed for cutting 16 mm by 10 mm standard metric keyways in ferrous and non-ferrous metal workpieces using Style E-1 broaching press or arbor press setups.

Installation Notes

This broach is installed and operated by qualified machinists using a broaching press or arbor press. Ensure the workpiece is securely fixtured and the press is rated for the required push force before beginning the cut. Shims must be staged in proper sequence to achieve the correct depth increment on each pass. Follow applicable shop safety procedures and wear appropriate eye and hand protection when handling or pressing broaches.
