Value Collection 395-2328 Keyway Broach Style D-1 14mm

Product Description

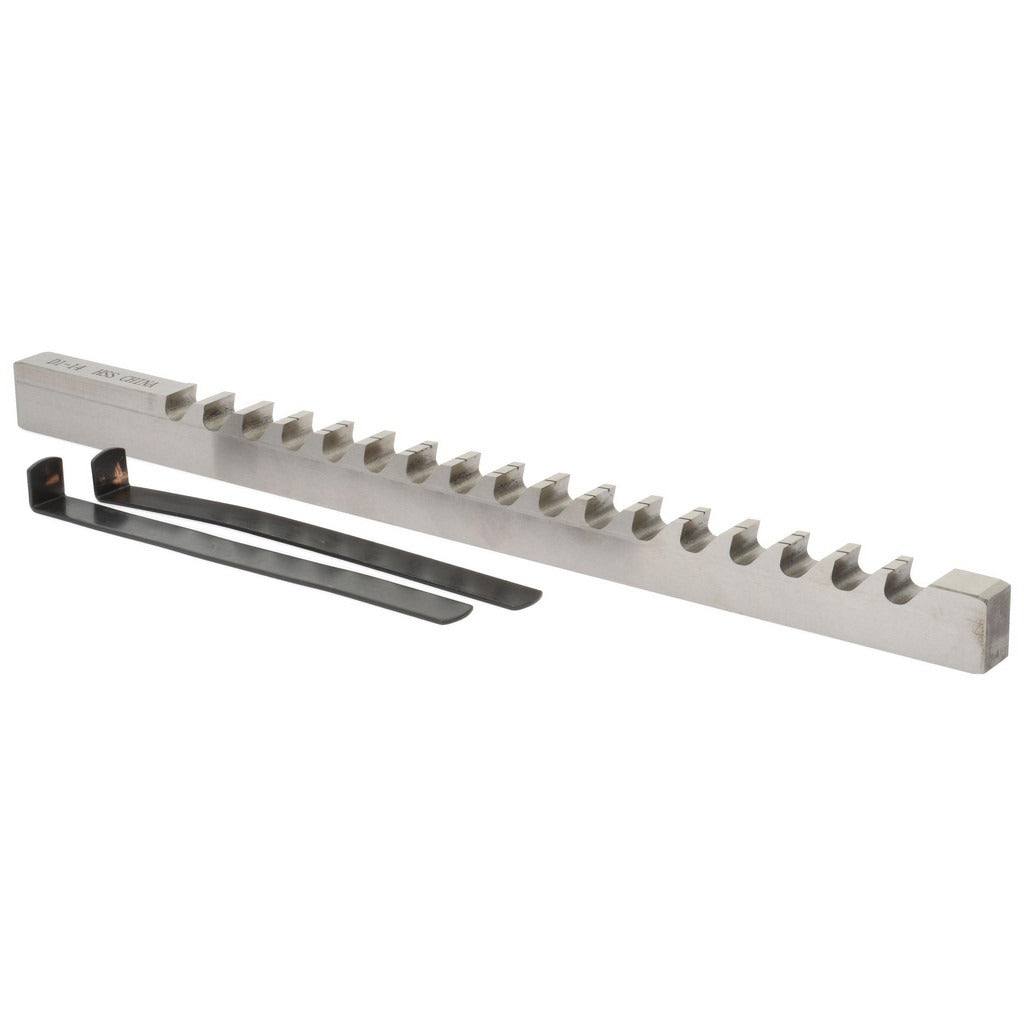

The VALUE COLLECTION 395-2328 is a Style D-1 keyway broach machined from high speed steel (HSS), designed for cutting precise keyways in ferrous and non-ferrous metal workpieces. This broach measures 13-7/8 inches overall length with a 9/16-inch body width and cuts a 14 mm wide keyway conforming to a 14x9 standard metric key size. The cutting length range spans 1 to 6 inches, making it suitable for a variety of hub depths. With 17 teeth at a 5/8-inch tooth pitch and a bright finish, this tool delivers consistent dimensional accuracy across production and maintenance applications. Two shims are required for proper installation and sizing.

This keyway broach is intended for use in machine shops, maintenance facilities, and production environments where metric keyways must be cut into bores on gears, pulleys, sprockets, and couplings. It is appropriate for both manual arbor press setups and hydraulic press operations. The 14 mm width with a keyway width tolerance of 0.5517 suits standard metric shaft and hub assemblies requiring a 14x9 key fit.

Key Features

• Style D-1 broach profile for standard metric keyway cutting
• High speed steel construction rated for ferrous and non-ferrous metal applications
• 14 mm keyway width with 14x9 standard metric key size compatibility
• Cutting length range of 1 to 6 inches accommodates varied hub depths
• 17 teeth at 5/8-inch tooth pitch for controlled, progressive material removal
• Bright finish for corrosion resistance and dimensional inspection ease
• Two shims required and included for proper broach sizing

Compatibility

Designed for cutting 14 mm wide keyways in ferrous and non-ferrous metal bores compatible with 14x9 standard metric key size assemblies, including gears, pulleys, sprockets, and couplings requiring a Style D-1 broach profile.

Installation Notes

Keyway broaching is performed by qualified machinists using an arbor press or hydraulic press with the appropriate broach bushing and push-type fixture. Always ensure the workpiece bore is properly supported and aligned before applying press force. Use the specified two shims to achieve the correct keyway depth; do not substitute shim thickness without verifying dimensional requirements. Cutting fluid appropriate for the workpiece material should be applied to extend tool life and improve surface finish.
