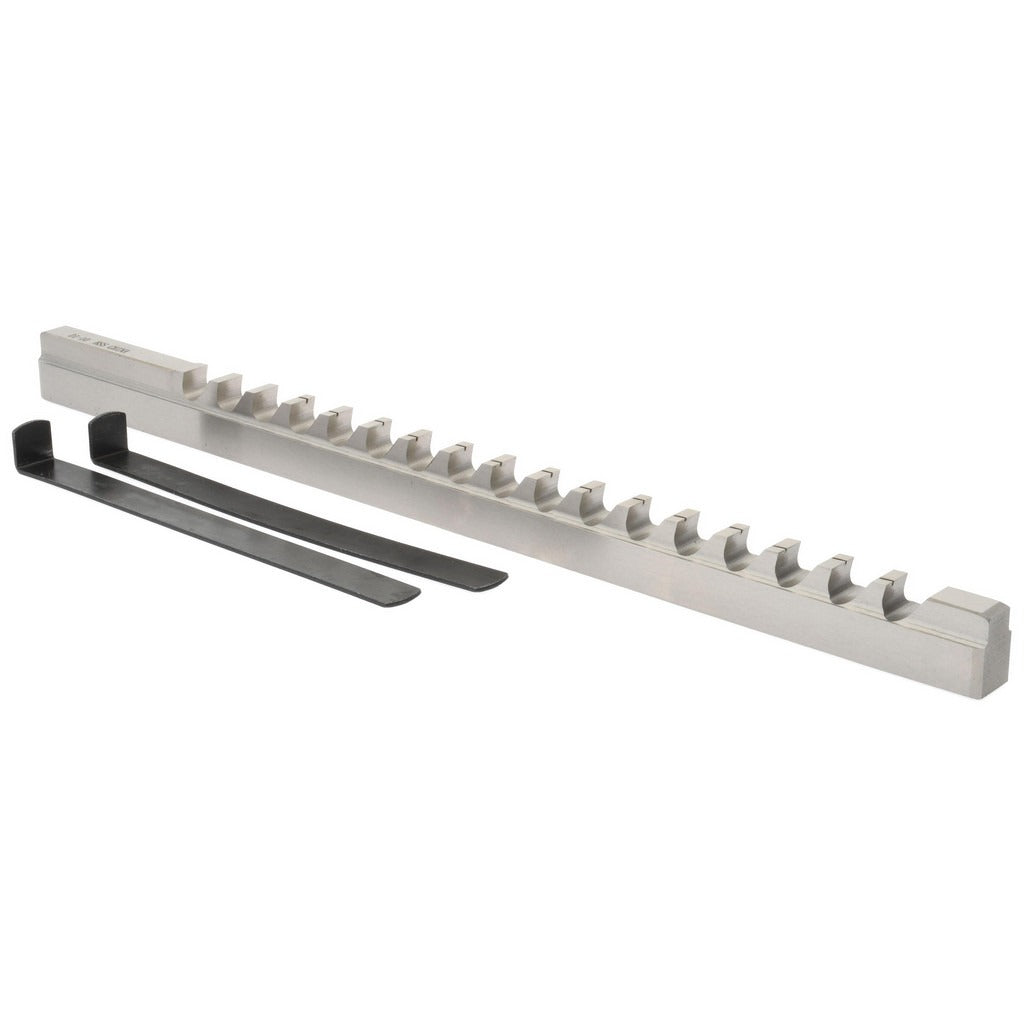

Value Collection 395-2224 Keyway Broach D-1 Hss 10mm

Product Description

The VALUE COLLECTION 395-2224 is a Style D-1 keyway broach made from high speed steel (HSS), designed to cut precise keyway slots in both ferrous and non-ferrous metal workpieces. The broach measures 13-7/8 inches overall length with a 9/16-inch body width and cuts a 10 mm wide keyway. Cutting length ranges from 1 to 6 inches depending on the application and stack setup. With 17 teeth at a 5/8-inch pitch and a bright finish, this tool delivers clean, accurate cuts in machining and shop environments. Two shims are required for proper setup and sizing.

This broach is suited for use in machine shops, maintenance and repair operations, and manufacturing environments where keyway slots must be cut into hubs, sprockets, gears, pulleys, or similar components. It is compatible with the 10x8 mm standard metric key size, making it appropriate for metric-keyed shaft and bore applications. Machinists and toolroom technicians working with rotary components and power transmission assemblies will find this broach applicable to a wide range of production and repair tasks on both ferrous and non-ferrous metals.

Key Features

• Style D-1 keyway broach configuration for standard push-type broaching setups
• High speed steel construction for durability across ferrous and non-ferrous metal applications
• 10 mm keyway width with 0.3942-inch width tolerance for precise slot sizing
• 17 teeth at 5/8-inch pitch for controlled, progressive material removal
• Cutting length range of 1 to 6 inches accommodates a variety of hub depths
• Bright finish maintains dimensional consistency and reduces surface drag during cutting

Compatibility

Compatible with 10x8 mm standard metric key size applications in ferrous and non-ferrous metals. Two shims are required for correct broach sizing during use.

Installation Notes

Keyway broaches of this type are installed and operated by machinists using an arbor press or hydraulic press rated for the required push force. Always ensure the workpiece is securely fixtured and the broach is properly aligned before applying force to avoid tool deflection or workpiece damage. Install the correct number of shims as specified before broaching to achieve the target keyway width. Inspect the broach teeth for wear or chipping before each use and never use a damaged broach.
