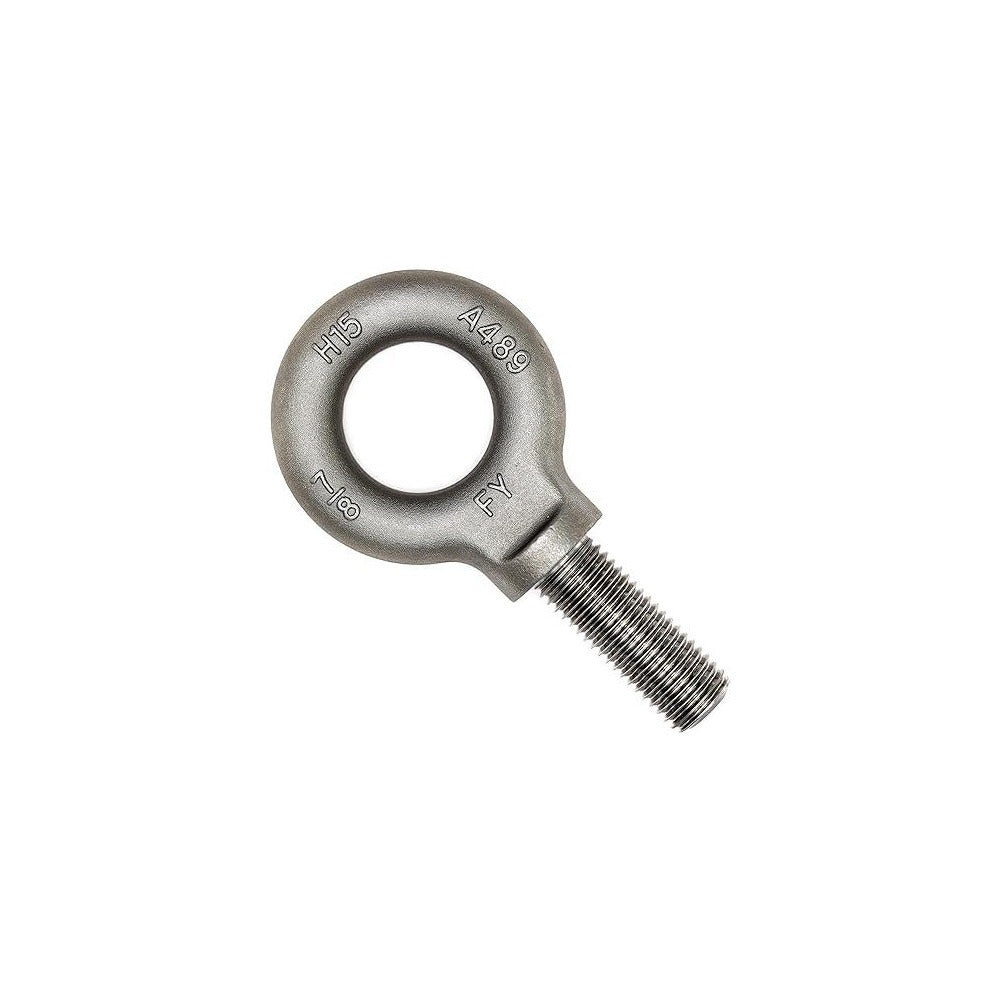

Value Collection 38628 Fixed Shoulder Eye Bolt 7000 Lb

Product Description

The VALUE COLLECTION 38628 is a fixed lifting eye bolt with a shoulder, rated for a 7,000 lb lifting capacity and designed for use in rigging, hoisting, and load-securing applications across industrial and construction environments. Manufactured from Grade 1030 steel, this eye bolt features a 7/8-9 thread size and is fully threaded along a 2.25-inch shank length. The shoulder base provides critical lateral load resistance when the bolt is properly seated, making it suitable for angled pull applications within rated limits. Licensed riggers and industrial maintenance professionals are the primary installers and operators.

This eye bolt is suited for overhead lifting, machinery anchoring, and tie-down applications in manufacturing facilities, warehouses, shipyards, and construction job sites. The 7/8-9 thread size is a common industrial standard, making this bolt compatible with a wide range of standard nuts, threaded plates, and tapped holes in structural steel and heavy equipment. Sold in a package quantity of two, it is appropriate for applications requiring matched lifting points or redundant anchor locations.

Key Features

• 7,000 lb lifting capacity for heavy-duty rigging and hoisting tasks
• Shoulder design resists lateral loading when bolt is fully seated against the shoulder base
• Grade 1030 steel construction provides strength and durability in demanding environments
• Fully threaded 2.25-inch shank ensures maximum thread engagement in the receiving material
• 7/8-9 thread size matches common industrial tapped holes and fastener hardware
• Sold as a package of two bolts for matched or paired anchor-point installations

Compatibility

Designed as an OEM-style fixed shoulder eye bolt for use with standard 7/8-9 threaded hardware in industrial lifting and rigging applications.

Installation Notes

Installation should be performed by a qualified rigger or maintenance professional familiar with ASME B30.26 standards for rigging hardware. Always thread the bolt fully until the shoulder seats flush and tight against the mounting surface before applying any load. Never exceed the rated 7,000 lb lifting capacity, and derate the load rating when the pull angle deviates from vertical, in accordance with applicable rigging standards. Inspect threads and the eye for deformation, cracks, or corrosion before each use.
