Value Collection 383-8642 TSE-12 Boring Tool Bit C2 Carbide

Product Description

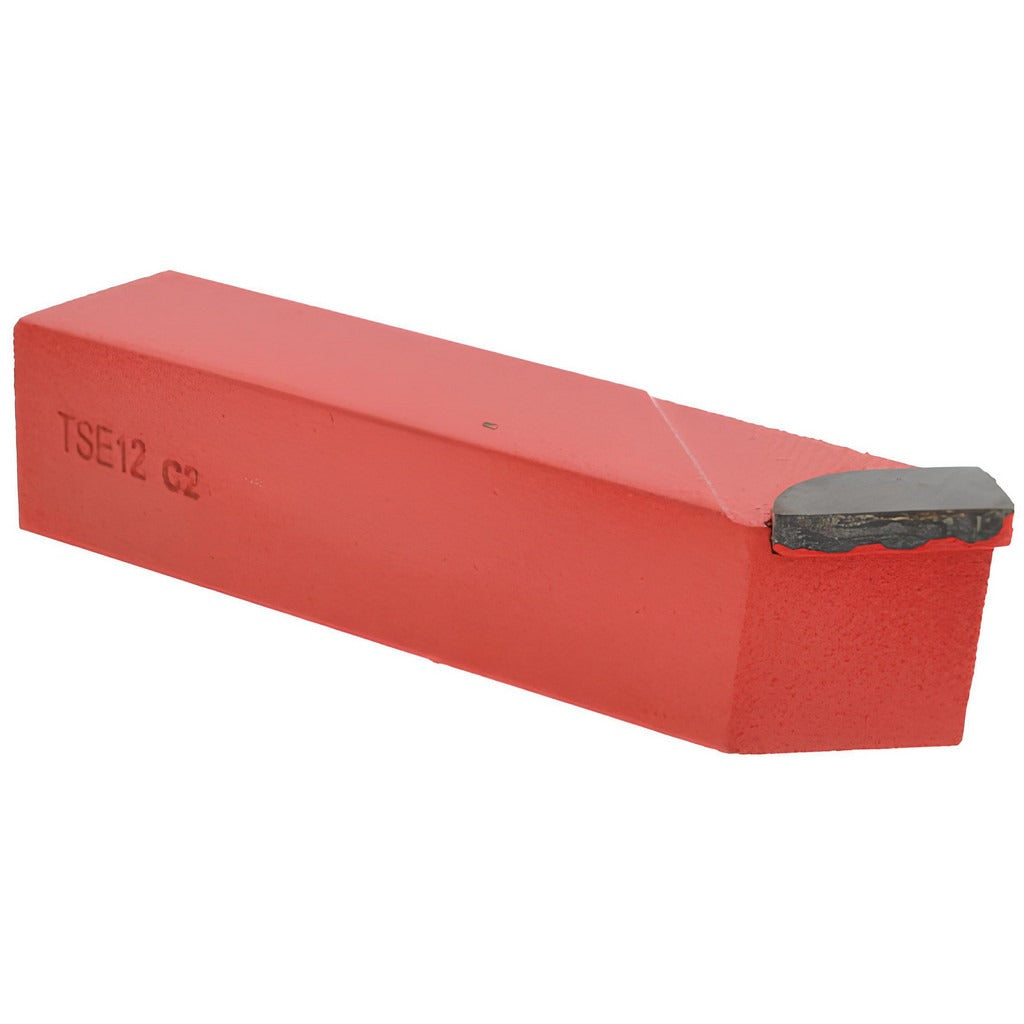

The VALUE COLLECTION 383-8642 is a single-point square shank boring tool bit built to industry standard TSE-12. It features a C2-grade solid carbide tip with a neutral cutting direction and a 15-degree lead angle, making it well suited for stable, straight boring passes on a variety of workpiece materials. The shank measures 3/4 inches in height and 3/4 inches in width with an overall length of 3-1/2 inches. The nose radius is 1/32 inches. At 0.5 pounds, the bit is compact and sized for standard lathe and boring setups. Machinists and toolroom operators install this style of bit in production and maintenance environments where consistent carbide performance is required.

This tool bit is intended for boring operations on lathes and similar turning equipment. The neutral cutting direction suits straight-in boring applications where left- or right-hand rake is not required. The C2 carbide grade is a general-purpose grade commonly applied to cast iron, non-ferrous metals, and some steels at moderate cutting speeds. It is a practical choice for job shops, maintenance machining, and production turning where a TSE-12 standard boring bit is called for.

Key Features

• C2-grade solid carbide tip for general-purpose boring on a range of materials
• Neutral cutting direction for straight-in boring passes
• 15-degree lead angle per TSE-12 industry standard
• Square shank at 3/4 inches x 3/4 inches for secure tool post clamping
• 1/32-inch nose radius for controlled surface finish in boring applications
• Compact 3-1/2-inch overall length fits standard lathe tool holders

Compatibility

Designed as a TSE-12 industry-standard replacement or direct-fit boring tool bit for lathes and turning centers that accept a 3/4-inch square shank tool holder.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Power down and lock out the machine before seating or adjusting the tool bit in the tool post or boring bar holder. Ensure the shank is clamped securely and the cutting edge is set at the correct center height before resuming operation. Follow applicable shop safety procedures and machine manufacturer guidelines when setting tool geometry.
