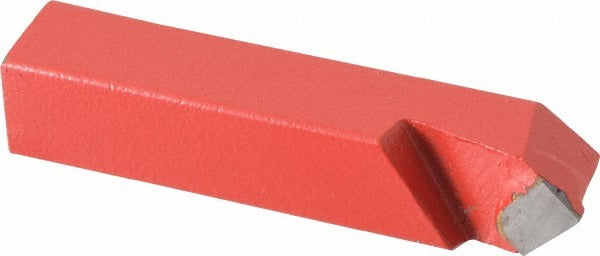

Value Collection 383-8622 Boring Tool Bit TSE-8 C2 Carbide

Product Description

The VALUE COLLECTION 383-8622 is a single-point square shank boring tool bit conforming to industry standard TSE-8. It features a solid carbide C2-grade tip brazed to a square steel shank and is designed for boring operations on lathes and similar turning equipment. The shank measures 0.5 inches in height and 0.5 inches in width, with an overall length of 2.5 inches. The neutral cutting direction and 15-degree lead angle make it suitable for straight boring passes. At 0.16 pounds, it is a compact, solid tool intended for machinists and toolroom technicians running general-purpose boring applications.

This tool bit is used in metal-cutting boring operations, typically on manual or CNC lathes in job shop, maintenance, and production machining environments. The C2 solid carbide tip grade is commonly applied to cast iron, non-ferrous metals, and general-purpose ferrous workpieces at moderate cutting speeds. The neutral geometry accommodates straight-in boring without a preferred left or right cutting bias, giving the operator flexibility in setup. It is a standard TSE-style bit appropriate for toolholders and boring bars designed around the TSE-8 industry specification.

Key Features

• C2-grade solid carbide tip for wear resistance in general-purpose boring
• Neutral cutting direction for straight boring passes without left or right bias
• 15-degree lead angle for controlled chip engagement
• 1/32 inch nose radius for a balance of surface finish and edge strength
• Compact 2.5 inch overall length suits tight boring bar setups
• Conforms to TSE-8 industry standard for broad toolholder compatibility

Compatibility

Designed as an OEM-style replacement or standard addition for toolholders and boring bars built to the TSE-8 industry standard with a 0.5 inch square shank seat.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. The machine spindle must be fully stopped and all power isolated before seating or adjusting the tool bit in the holder. Secure the shank firmly in the toolholder using the manufacturer-specified clamping method to prevent movement during cutting. Follow applicable shop safety standards and machine-tool manufacturer guidelines for tool bit installation and replacement.
