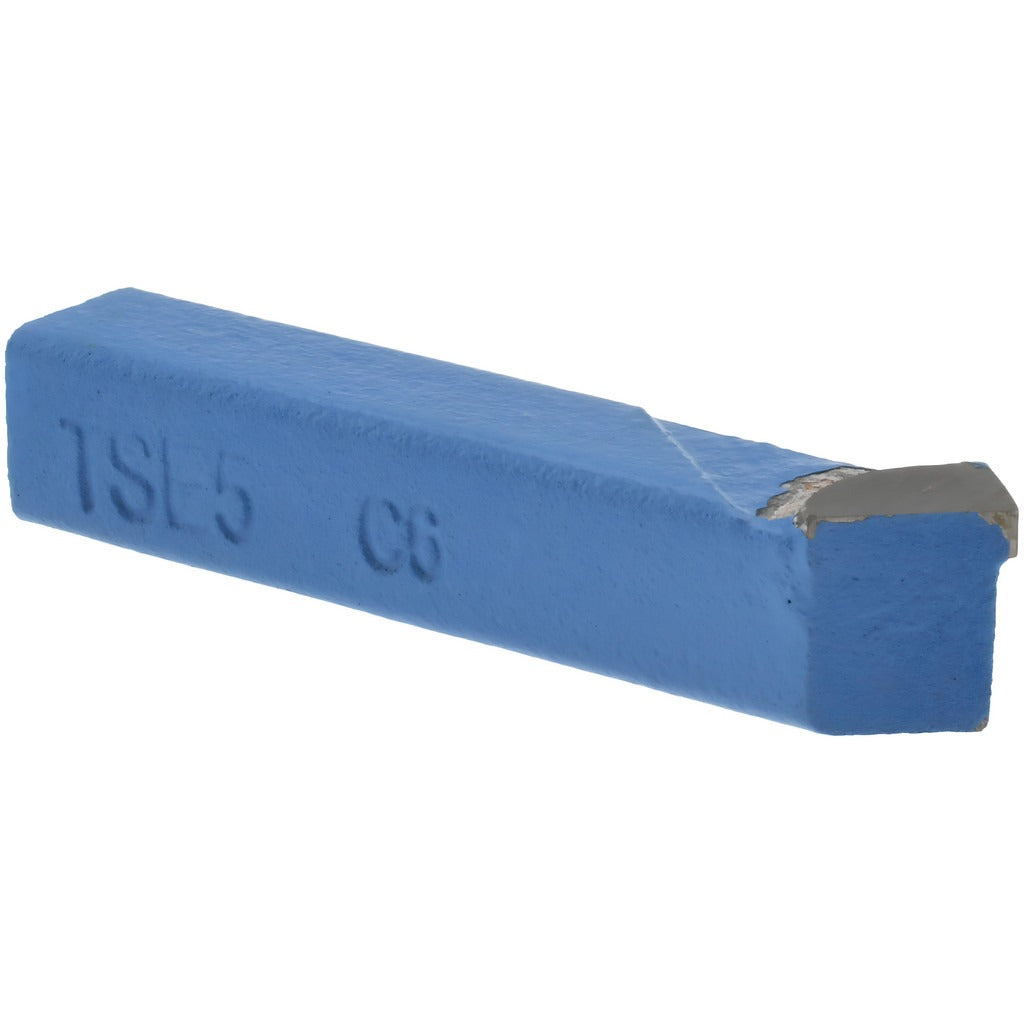

Value Collection 383-8606 TSE-5 Single-point Tool Bit

Product Description

The VALUE COLLECTION 383-8606 is a single-point tool bit designed for square shank boring operations on lathes and boring bars. It follows the TSE-5 industry standard and features a solid carbide tip graded C6, making it suitable for cutting hard and abrasive materials at elevated surface speeds. The shank measures 5/16 inches in both height and width, and the overall length is 1.5 inches. A neutral cutting direction and 15-degree lead angle give machinists consistent chip flow without favoring a left or right hand setup. This tool bit is used by machinists, toolroom operators, and precision boring specialists.

This tool bit fits standard boring bar setups where a TSE-5 style insert or brazed-tip bit is specified. The 1/64 inch nose radius produces a relatively sharp corner profile appropriate for finishing passes and tight-tolerance internal diameters. Its compact 1.5 inch overall length suits smaller toolholders and short-reach boring applications in both job shop and production environments. Neutral geometry allows use on both manual engine lathes and CNC turning centers without tool path reconfiguration.

Key Features

• TSE-5 industry standard geometry for broad toolholder compatibility
• C6 solid carbide tip for hardness and wear resistance in boring applications
• Neutral cutting direction suits both manual and CNC turning setups
• 5/16 inch square shank fits standard boring bar pockets
• 1/64 inch nose radius for sharp corner profiles and finishing passes
• 15-degree lead angle promotes consistent chip evacuation during boring

Compatibility

Designed as an OEM-style replacement or direct-fit tool bit for toolholders and boring bars accepting TSE-5 style square shank single-point bits with a 5/16 inch shank cross-section.

Installation Notes

Installation is performed by qualified machinists following standard lathe or boring machine setup procedures. Secure the shank firmly in the toolholder pocket and confirm proper tool height alignment to centerline before engaging the cut. Inspect the carbide tip for chipping or wear before each use. Follow applicable shop safety procedures and machine manufacturer guidelines when setting tool overhang and feed rates.
