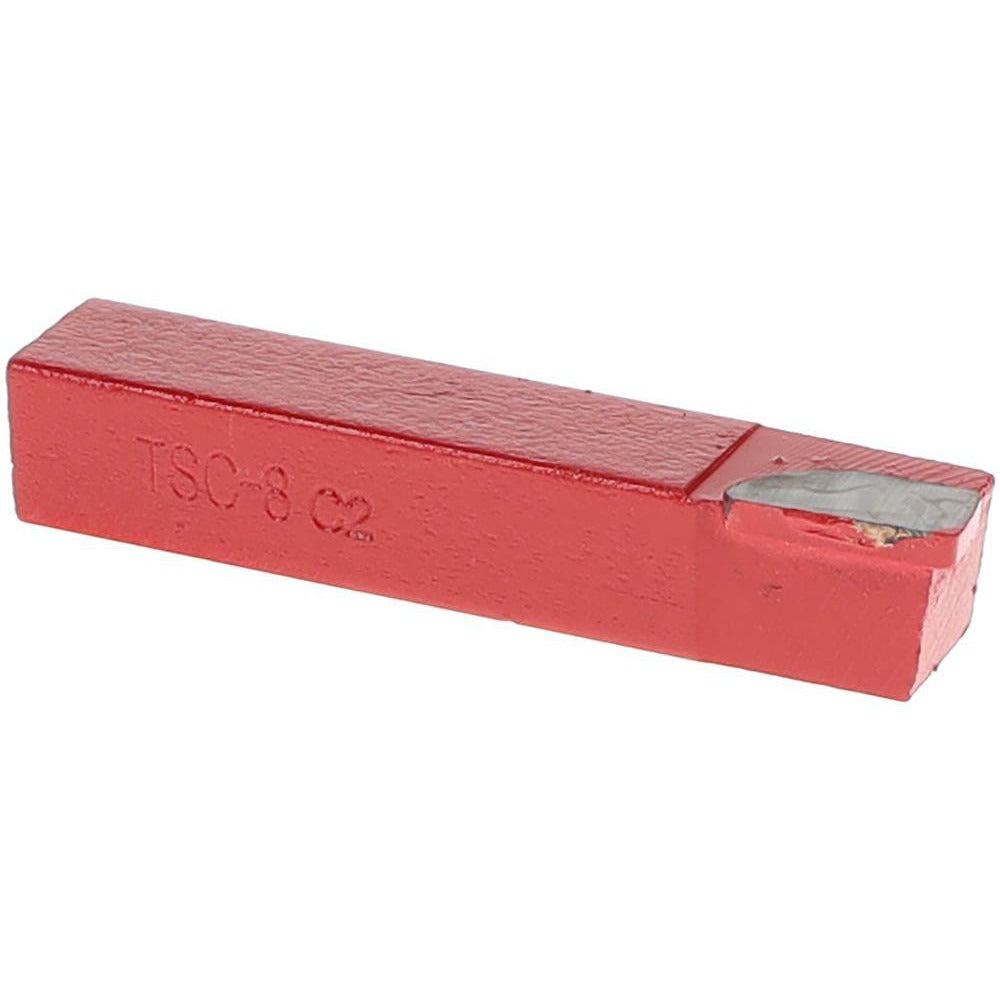

Value Collection 383-8522 Boring Tool Bit TSC-8 1/2 in

Product Description

The VALUE COLLECTION 383-8522 is a single-point square shank boring tool bit conforming to the TSC-8 industry standard. It features a C2-grade solid carbide tip with a neutral cutting direction, making it suited for straight boring operations on a lathe or boring bar setup. The shank measures 0.5 inches in both height and width, with an overall length of 2.5 inches. The 1/32-inch nose radius delivers a controlled surface finish during through-bore and blind-bore cuts. Machinists and tool-and-die professionals use this style of insert-style bit where rigidity and carbide wear resistance are required in production or job-shop environments.

This tool bit is intended for square shank boring applications on manual and CNC lathes, boring mills, and similar turning equipment. The TSC-8 form factor is a recognized industry standard designation, allowing direct substitution into holders designed for that specification. The neutral cutting geometry accommodates both right-hand and left-hand boring bar orientations, and the C2 carbide grade is appropriate for general-purpose boring of cast iron, non-ferrous metals, and similar workpiece materials.

Key Features

• C2-grade solid carbide tip for wear resistance in general-purpose boring operations
• Neutral cutting direction compatible with multiple boring bar orientations
• TSC-8 industry standard form factor for direct holder compatibility
• Square shank measures 0.5 inches by 0.5 inches for secure toolholder clamping
• 1/32-inch nose radius for controlled surface finish on bored diameters
• Compact 2.5-inch overall length suited to small-bore lathe applications

Compatibility

Designed as a direct-fit replacement or standard complement for TSC-8 square shank boring toolholders accepting a 0.5-inch by 0.5-inch shank cross-section.

Installation Notes

Installation is performed by a machinist or toolroom technician. Secure the shank fully in the boring bar or toolholder before engaging the workpiece, and verify that all clamping screws are tightened before spindle rotation. De-energize and lock out the machine before changing or adjusting tool bits. Confirm shank seating depth and overhang are within the toolholder manufacturer guidelines to avoid chatter or tip fracture.
