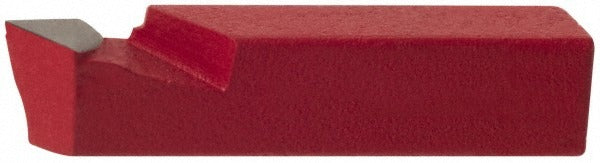

Value Collection 383-8512 TSC-6 Boring Tool Bit 3/8 in Shank

Product Description

The VALUE COLLECTION 383-8512 is a single-point square shank boring tool bit designed for precision internal boring operations on lathes and boring machines. Built to TSC-6 industry standard specifications, it features a C2 solid carbide tip that delivers good wear resistance and cutting performance in a range of workpiece materials. The shank measures 3/8 inches in height and 3/8 inches in width, with an overall length of 1.75 inches. A 1/64 inch nose radius provides a controlled cutting edge geometry suited to finish and semi-finish boring passes. The neutral cutting direction makes this bit adaptable to standard boring setups without requiring a left- or right-hand orientation change.

This tool bit is suited for small-bore turning and boring work in machine shops, toolrooms, and production environments. The compact 1.75 inch overall length fits tight tool post and boring bar setups where space is limited. Machinists, tool-and-die makers, and CNC operators working with lathes or manual boring equipment will find this bit appropriate for ferrous and non-ferrous material applications where a C2 carbide grade is specified. Its square shank profile seats directly in standard tool holders designed for the TSC series.

Key Features

• TSC-6 industry standard designation for direct cross-reference and replacement
• C2 solid carbide tip for improved wear resistance versus high-speed steel alternatives
• Neutral cutting direction accommodates standard boring setups without hand-specific holders
• 3/8 inch square shank fits common TSC-style tool holders and boring bar setups
• 1/64 inch nose radius suitable for finish and semi-finish boring passes
• Compact 1.75 inch overall length for tight-clearance boring applications

Compatibility

Designed as a direct replacement for TSC-6 industry-standard single-point boring tool bits. Compatible with tool holders and boring setups that accept a 3/8 inch square shank TSC-style bit.

Installation Notes

Installation is performed by qualified machinists or toolroom personnel. Secure the shank firmly in the tool holder and verify center height alignment before engaging the cut. Ensure the machine spindle is fully stopped and the machine is in a safe state before changing or adjusting tool bits. Do not exceed the tool holder's recommended depth-of-cut or feed rate for the carbide grade in use.
