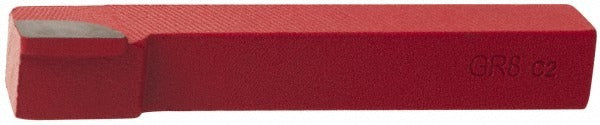

Value Collection 383-8136 FL-16 Tool Bit Left Hand C6 Carbide

Product Description

The VALUE COLLECTION 383-8136 is an FL-style single-point tool bit designed for offset end cutting operations on metal lathes. Built with a C6-grade solid carbide tip brazed to a steel shank, this bit delivers consistent cutting performance in turning and facing applications. The shank measures 1 inch in height and 1 inch in width, with an overall length of 7 inches. A 1/32-inch nose radius gives the cutting edge a defined geometry suited for finishing cuts and work close to chuck jaws. It is configured for left-hand cutting direction. Machinists and toolroom operators working on manual or CNC lathes install this style of bit into a standard tool post or boring bar holder.

This tool bit is suited for turning and facing operations where the tool must work close to a chuck jaw or step to a shoulder. The offset end cutting geometry allows the operator to reach into tight clearances that a straight bit cannot access. It is appropriate for use on ferrous metals and other materials compatible with C6-grade carbide. Typical applications include production turning on manual engine lathes and light-duty CNC turning centers. The left-hand configuration feeds from left to right across the workpiece, making it the correct choice when that feed direction is required by the setup.

Key Features

• C6-grade solid carbide tip for wear resistance and consistent edge retention
• Offset end cutting geometry allows turning close to chuck jaws and shoulders
• Left-hand cutting direction for left-to-right feed operations
• 1-inch by 1-inch square shank fits standard heavy-duty tool posts
• 1/32-inch nose radius suited for finishing passes and shoulder blending
• 7-inch overall length provides rigidity in the tool post

Compatibility

Designed as an OEM-style drop-in for FL-16 industry-standard single-point tool bit applications in standard tool post holders accepting a 1-inch square shank.

Installation Notes

Installation is performed by qualified machinists or toolroom personnel. Power down and lock out the lathe before inserting or adjusting the tool bit in the holder. Seat the shank fully and square in the tool post before tightening. Verify tool centerline height relative to the workpiece centerline before beginning a cut, as incorrect height will affect chip formation and edge life.
