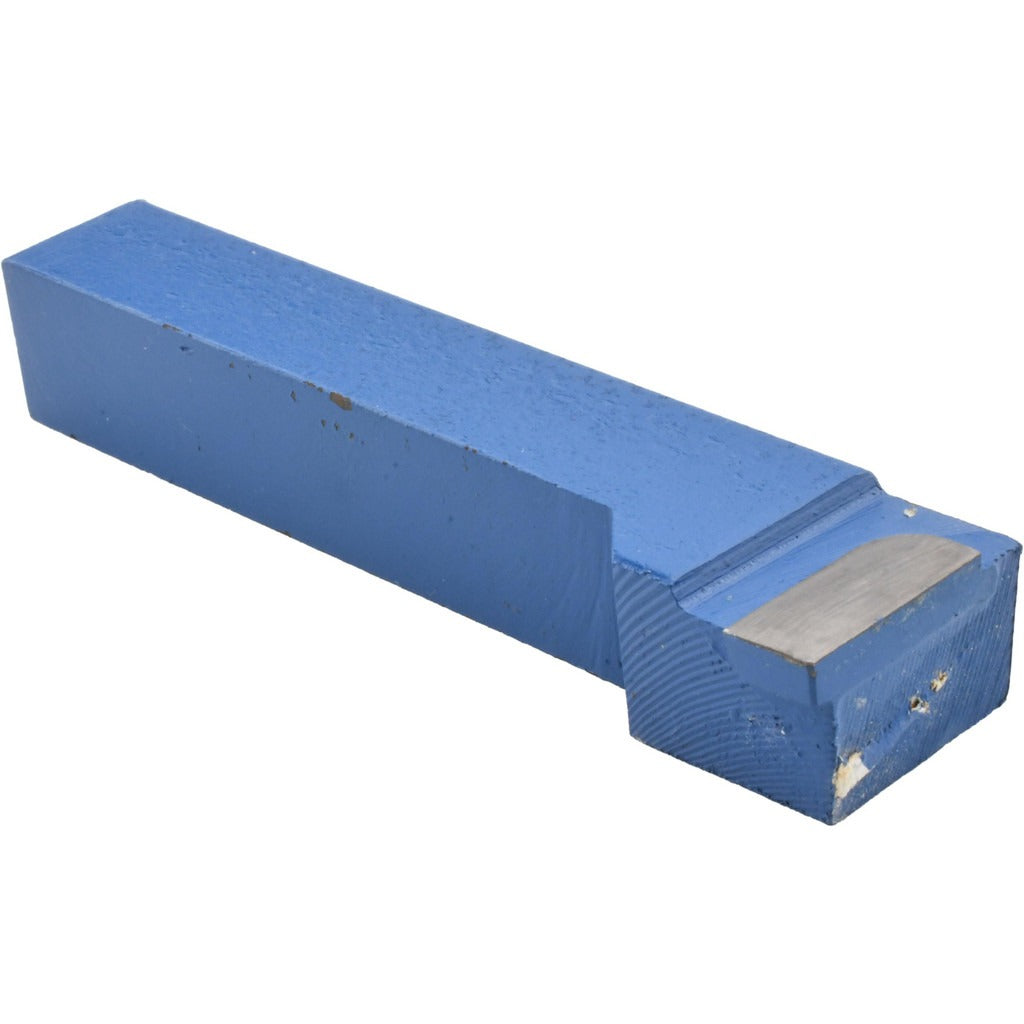

Value Collection 383-8116 FL-10 Tool Bit 5/8 in Left Hand C6 Carbide

Product Description

The VALUE COLLECTION 383-8116 is an FL-10 style single-point tool bit designed for offset end cutting operations on a lathe. It features a C6-grade solid carbide tip brazed to a 5/8-inch by 5/8-inch shank with a 4-inch overall length and a 1/32-inch nose radius. The left-hand cutting direction makes this bit suited for specific tool-post orientations where a conventional right-hand bit cannot reach. Machinists and tool-and-die tradespeople use this bit for precision turning and facing work on metal workpieces in both production and job-shop environments.

This tool bit is applied to turning and facing operations, including facing to a shoulder and working close to a chuck jaw — situations that demand a compact, rigid cutting tool that can reach into tight clearance zones. The FL-10 industry-standard designation allows straightforward cross-referencing when sourcing a direct replacement. It is well suited to manual engine lathes and CNC turning centers that accommodate standard brazed-carbide single-point tooling.

Key Features

• C6-grade solid carbide tip for wear resistance on steel, cast iron, and hard materials
• Left-hand cutting direction for offset and reverse-approach turning setups
• Offset end cutting geometry enables turning and facing to a shoulder in confined spaces
• 1/32-inch nose radius balances surface finish quality with edge strength
• 5/8-inch by 5/8-inch square shank fits standard tool holders and lantern-style tool posts
• FL-10 industry standard number for easy replacement cross-referencing

Compatibility

Designed as a standard FL-10 style brazed-carbide single-point tool bit compatible with tool holders and tool posts that accept a 5/8-inch square shank.

Installation Notes

Installation is performed by a machinist or toolroom technician. Power down and lock out the lathe before seating or adjusting the tool bit in the tool holder. Set the tool bit on center height relative to the workpiece spindle centerline before engaging a cut. Inspect the carbide tip for chips or cracks before each use; a damaged tip should not be used in service.
