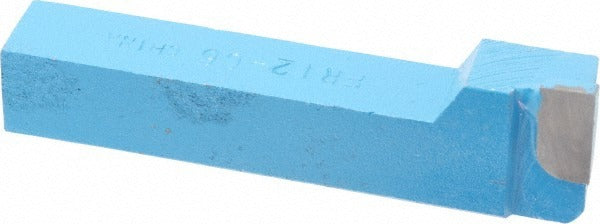

Value Collection 383-8026 FR-12 Tool Bit 3/4 in Shank C6 Carbide

Product Description

The VALUE COLLECTION 383-8026 is an FR-style single-point tool bit designed for offset end cutting operations on metal lathes and turning centers. Built with a C6-grade solid carbide tip, this right-hand cutting tool delivers the hardness and wear resistance required for straddle facing, turning, and facing-to-shoulder applications. The shank measures 3/4 inches in both height and width, with an overall length of 4.5 inches. A 1/32-inch nose radius provides a controlled cutting edge suited to finish and semi-finish passes. Licensed machinists and toolroom technicians are the primary installers and operators of this tooling.

This tool bit is suited for use in production and job-shop environments where consistent offset end cutting is required. The FR-12 industry standard designation makes it a straightforward replacement or addition to existing tool post setups. Typical applications include straddle facing operations, general turning, and facing cuts taken to a shoulder on ferrous and non-ferrous workpieces. The right-hand cutting direction is compatible with conventional lathe spindle rotation in standard turning setups.

Key Features

• FR-style offset end cutting geometry for straddle facing, turning, and facing-to-shoulder operations
• C6-grade solid carbide tip for high wear resistance and extended tool life
• Right-hand cutting direction for standard lathe spindle rotation
• 3/4 inch by 3/4 inch shank for rigid tool post seating
• 1/32 inch nose radius for controlled finish and semi-finish cutting
• FR-12 industry standard number for direct cross-reference replacement

Compatibility

Designed as an FR-12 industry-standard single-point tool bit compatible with tool posts and holders sized for a 3/4 inch square shank on manual and CNC lathes.

Installation Notes

Installation and setup should be performed by a qualified machinist or toolroom technician. Power down and lock out the lathe spindle before securing the tool bit in the tool post or holder. Ensure the cutting edge is set to the correct center height relative to the workpiece axis before engaging the spindle. Inspect the carbide tip for chipping or damage before each use and replace if the cutting edge is compromised.
