Value Collection 383-8006 FR-8 Carbide Tool Bit

Product Description

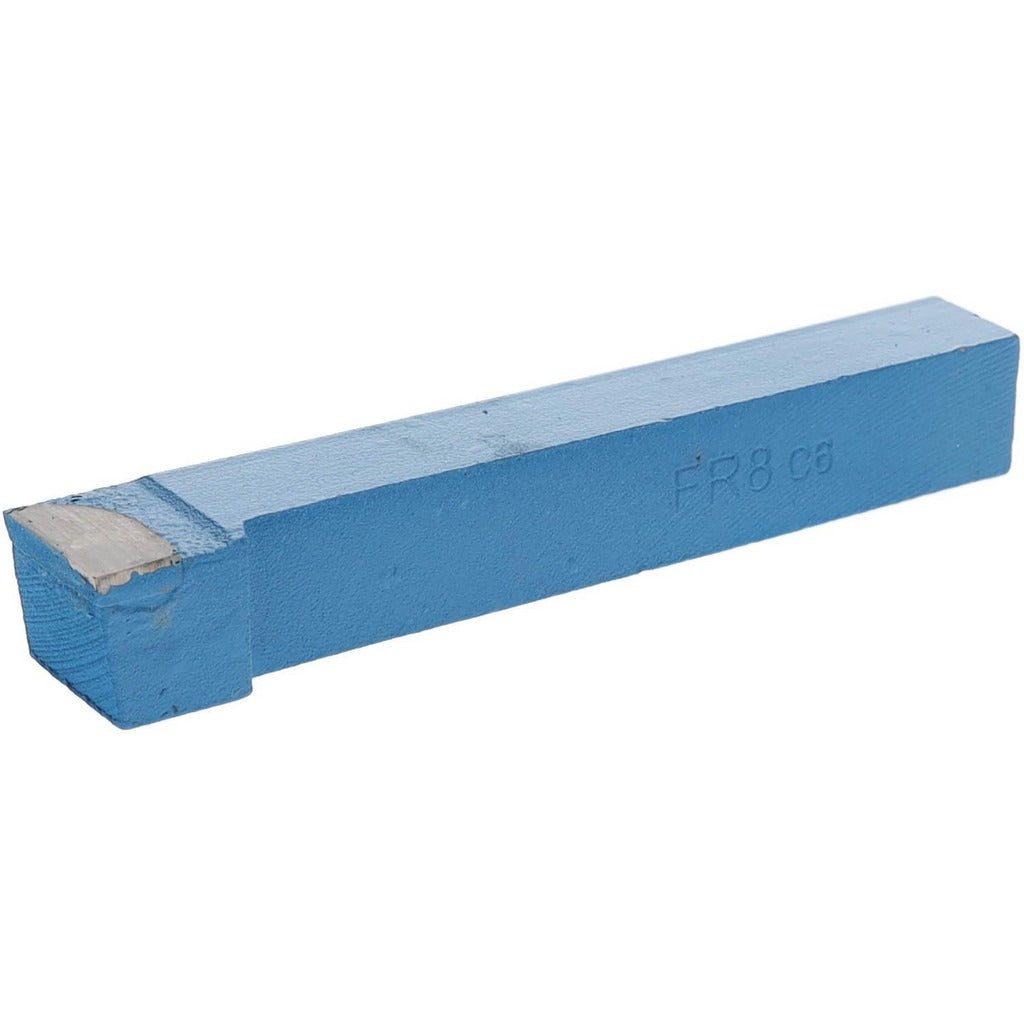

The VALUE COLLECTION 383-8006 is an FR-8 style single-point tool bit designed for precision turning and facing operations on manual and CNC lathes. Built with a C6 solid carbide tip, this right-hand cutting tool delivers consistent performance in straddle facing, straight turning, and facing-to-shoulder applications. The shank measures 0.5 inches in height and 0.5 inches in width, with an overall length of 3.5 inches. A 1/32-inch nose radius provides the edge geometry machinists need for controlled chip formation and surface finish in general-purpose cutting. Weighing 0.26 pounds, the tool is compact and easy to seat in standard tool holders.

This tool bit is suited for use in machine shops, job shops, and production environments where reliable offset end cutting is required. The right-hand cutting direction makes it the standard choice for conventional lathe setups where the tool feeds from right to left. The C6 carbide grade is appropriate for general turning of cast iron, non-ferrous metals, and other materials where a medium-grade uncoated carbide performs reliably. Machinists handling repetitive facing and shoulder operations will find the FR-8 geometry well-matched to those tasks.

Key Features

• FR-8 industry standard tool bit style for consistent interchangeability
• C6 solid carbide tip for durability and wear resistance in general-purpose turning
• Offset end cutting geometry suited for straddle facing and facing-to-shoulder work
• Right-hand cutting direction for standard lathe feed orientation
• 1/32-inch nose radius for controlled surface finish
• Compact 3.5-inch overall length fits standard tool holders without overhang

Compatibility

Designed as an OEM-style replacement and standard fitment single-point tool bit for lathes and turning centers that accept FR-style shank tooling with a 0.5-inch by 0.5-inch shank profile.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Power down and lock out the lathe before seating or adjusting the tool bit in the tool holder. Ensure the tool bit is clamped securely and set to the correct center height before resuming operation. Follow applicable OSHA and shop safety procedures when working with carbide-tipped cutting tools.
