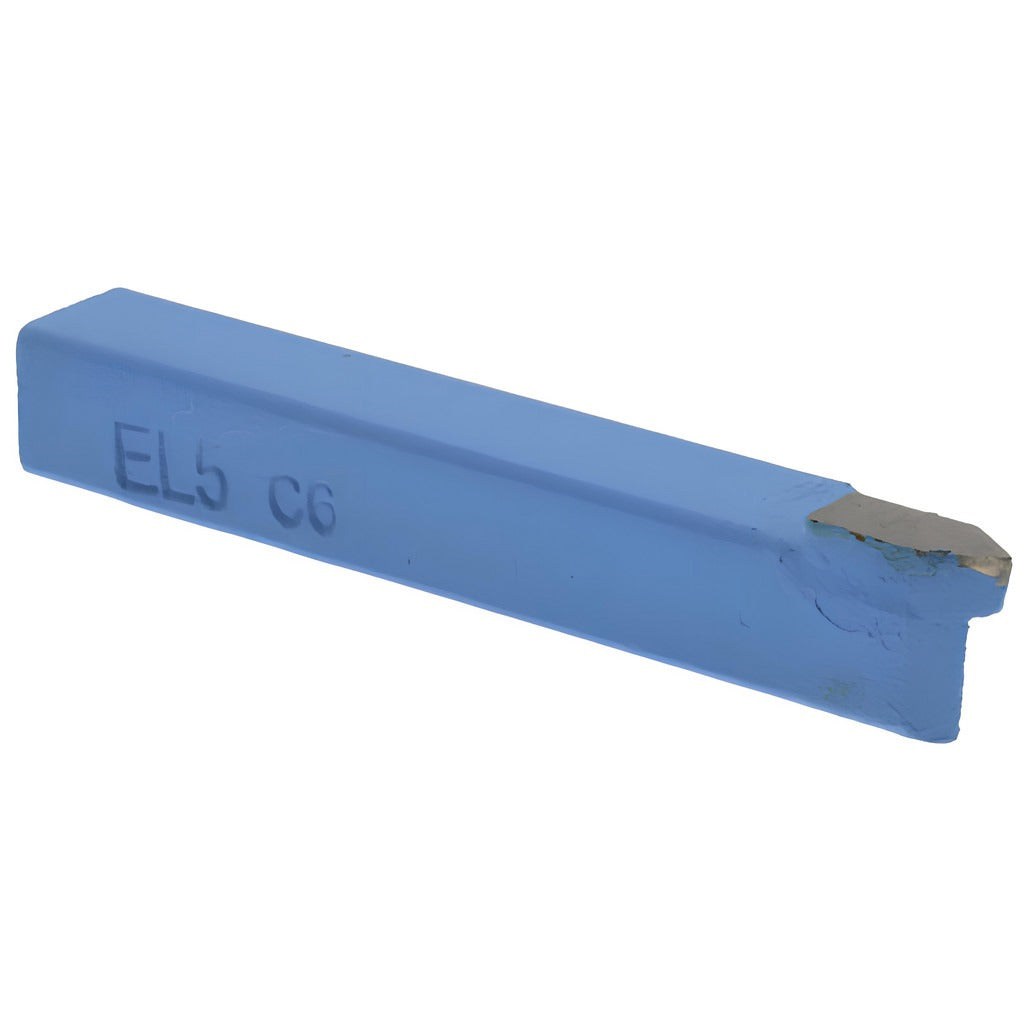

Value Collection 383-6336 EL-5 Single-point Tool Bit

Product Description

The VALUE COLLECTION 383-6336 is an EL-style single-point tool bit designed for offset threading and V-grooving operations on metal lathes and threading equipment. Built with a C6-grade solid carbide tip, this bit delivers the hardness and wear resistance needed for consistent thread form on ferrous and non-ferrous materials. The shank measures 5/16 inches in height and 5/16 inches in width, with an overall length of 2.25 inches. The left-hand cutting direction suits applications where the tool feeds toward the tailstock or engages a right-hand thread form in reverse orientation. Machinists, tool-and-die makers, and precision lathe operators are the primary users.

This bit is suited for threading and V-grooving-to-shoulder operations in production and job-shop environments. The EL-5 industry standard designation makes it a straightforward drop-in for tool holders and quick-change systems that accept EL-style inserts or solid bits with a 5/16-inch square shank profile. The 60-degree included angle matches standard thread forms including Unified National and metric profiles. It is applicable in both manual lathe and CNC turning center setups where a solid carbide threading bit is preferred over an inserted-tip alternative.

Key Features

• C6-grade solid carbide tip for high wear resistance on threading cuts
• 60-degree included angle for Unified National and metric thread form compatibility
• Left-hand cutting direction for tailstock-feed and reverse-thread applications
• 5/16 inch by 5/16 inch square shank fits standard EL-style tool holders
• EL-5 industry standard designation for straightforward tool holder matching
• Offset threading geometry allows cutting to shoulder without clearance issues

Compatibility

Designed for use in tool holders and quick-change systems accepting EL-style single-point threading bits with a 5/16-inch square shank profile. The EL-5 industry standard number is the primary reference for confirming holder fit.

Installation Notes

Installation is performed by machinists or qualified lathe operators. Secure the bit firmly in the tool holder and verify center height before threading. Power down the machine and engage the spindle lock before seating or adjusting the bit. Do not exceed the tool holder's rated shank clamp torque and confirm the cutting direction matches the lathe feed direction before engaging the workpiece.
