Value Collection 383-4052 Threading Tool Bit E-10 C2 Carbide

Product Description

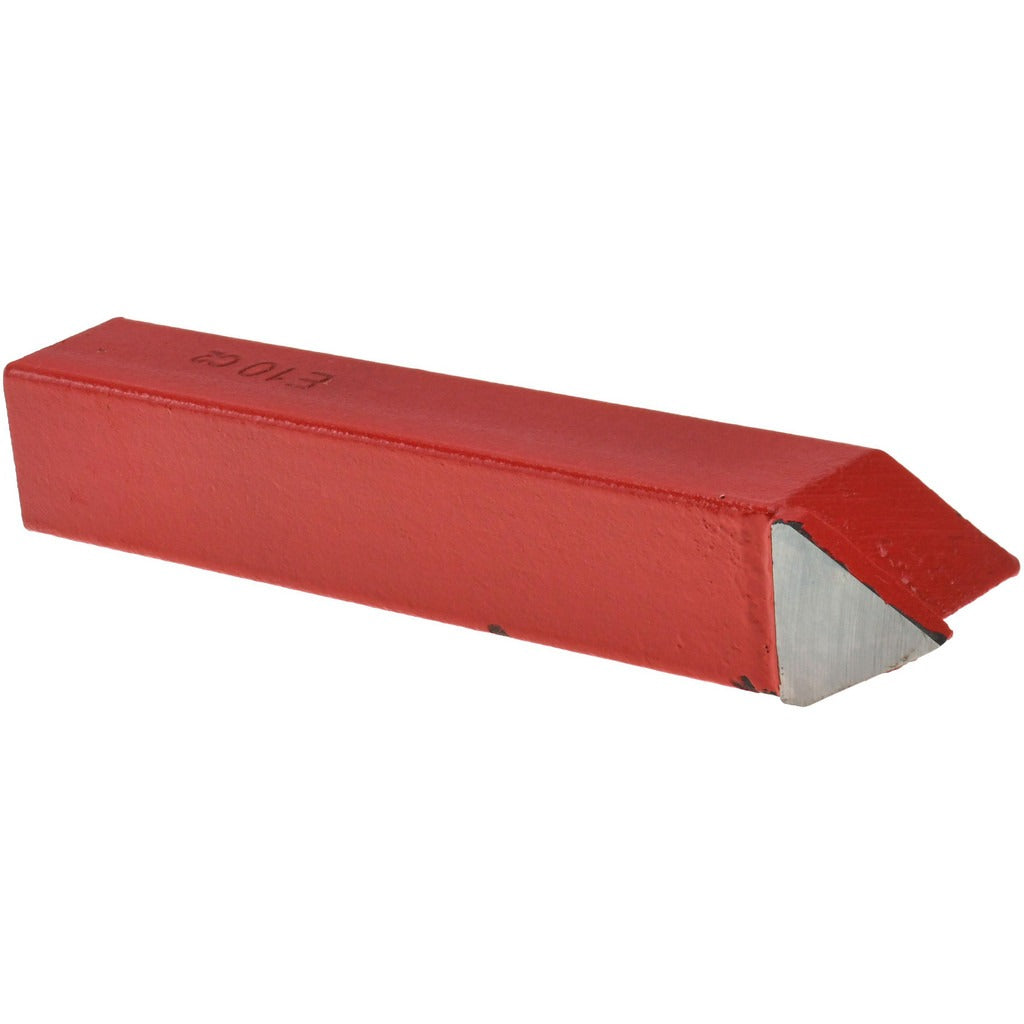

The VALUE COLLECTION 383-4052 is a single-point threading tool bit designed for precision cutting operations on lathes and threading machines. Built with an E-style geometry and a C2 grade solid carbide tip, this tool bit delivers consistent performance across chamfering, threading, undercutting, and V-grooving applications. The neutral cutting direction makes it a versatile choice for straightforward radial cutting setups. The shank measures 5/8 inches in height and 5/8 inches in width, with an overall length of 4 inches. Weighing 0.5 pounds, it is sized for standard tool holders used in production and job-shop environments.

This tool bit is suited for machinists and metalworking professionals handling threading and grooving operations on manual or CNC lathes. The 60-degree included angle matches standard thread form requirements and supports V-groove and chamfer work. It is appropriate for both light production runs and precision single-pass operations where a solid carbide tip is preferred over brazed or HSS alternatives. Typical users include tool-and-die shops, maintenance machinists, and production machine operators.

Key Features

• C2 grade solid carbide tip for hardness and wear resistance in threading applications
• E-10 industry standard geometry for compatibility with common tool holders
• 60-degree included angle supports threading, chamfering, V-grooving, and undercutting
• Neutral cutting direction suits standard radial cutting setups
• 5/8 inch square shank fits standard lathe tool posts and holders
• 4-inch overall length for reach and rigidity in typical lathe setups

Compatibility

Designed as an OEM-style replacement or direct-use tool bit for lathe tool holders accepting a 5/8 inch square shank and conforming to E-10 industry standard specifications.

Installation Notes

Installation is performed by qualified machinists following standard lathe tooling setup procedures. Power down and lock out the machine before seating the tool bit in the holder. Ensure the tool bit is properly clamped and aligned to centerline before engaging the cut. Consult machine manufacturer guidelines for appropriate feed rates and speeds when working with solid carbide tooling.
