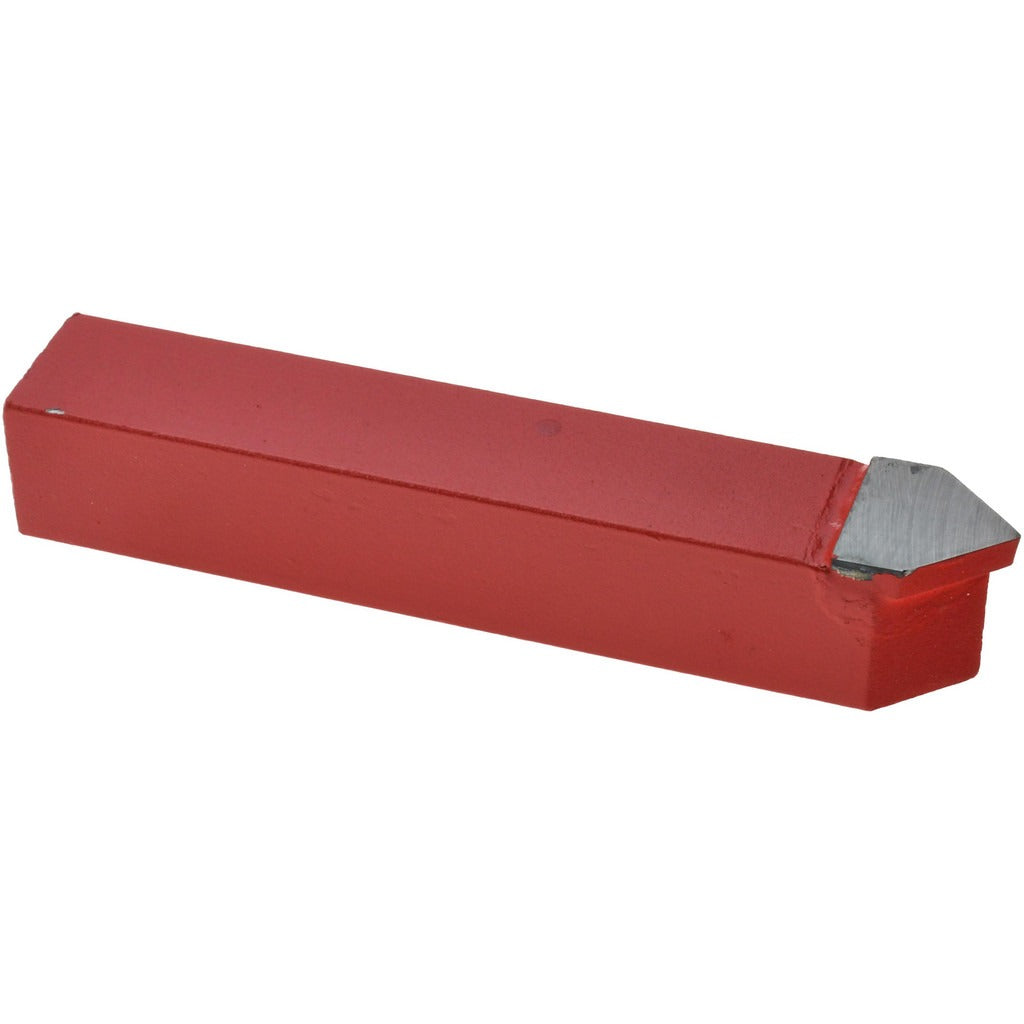

Value Collection 383-3072 Single-point Tool Bit Style D Neutral

Product Description

The VALUE COLLECTION 383-3072 is a Style D single-point tool bit designed for precision chamfering and pointed-nose turning operations on manual and CNC lathes. Built to industry standard D-12, this tool features a solid C2 carbide tip brazed to a steel shank, delivering the hardness and wear resistance required for intermittent and continuous cuts on ferrous and non-ferrous materials. The neutral cutting direction means the bit does not favor a left- or right-hand cut, making it adaptable to a range of setups. At 4.5 inches overall length with a 3/4 inch square shank, it fits standard tool posts and turrets commonly found in production and jobshop turning environments.

The 383-3072 is suited for machinists and toolroom professionals working with engine lathes, turret lathes, and CNC turning centers that accept 3/4 inch square shank tooling. The 80-degree included angle and pointed-nose geometry make it a practical choice for chamfering operations, external turning, and contour work where a neutral approach angle is preferred. It ships in a single-piece package and is ordered in single-unit increments, making it convenient for individual tool replacement as well as bench stock replenishment.

Key Features

• Industry standard D-12 designation for consistent cross-brand fitment in standard tool posts
• C2 solid carbide tip for improved hardness and wear resistance compared to high-speed steel
• Neutral cutting direction accommodates versatile lathe setups without tool-post repositioning
• 80-degree included angle with pointed-nose geometry optimized for chamfering applications
• 3/4 inch square shank fits common production and jobshop turning center tool holders
• 4.5 inch overall length provides adequate reach for standard turning operations

Compatibility

Designed as an OEM-style replacement or direct-fit tool bit for lathes and turning centers accepting 3/4 inch square shank, Style D single-point tool bits per the D-12 industry standard.

Installation Notes

Single-point tool bits are installed and adjusted by qualified machinists following shop safety procedures. Ensure the machine is fully powered down and the spindle is locked before changing tooling. Secure the shank firmly in the tool post or turret holder to the manufacturer-specified clamping torque using appropriate hex keys or hold-down bolts. Inspect the carbide tip for chipping or cratering before each use and replace if damaged, as a compromised tip can cause workpiece scrap or tool ejection.
