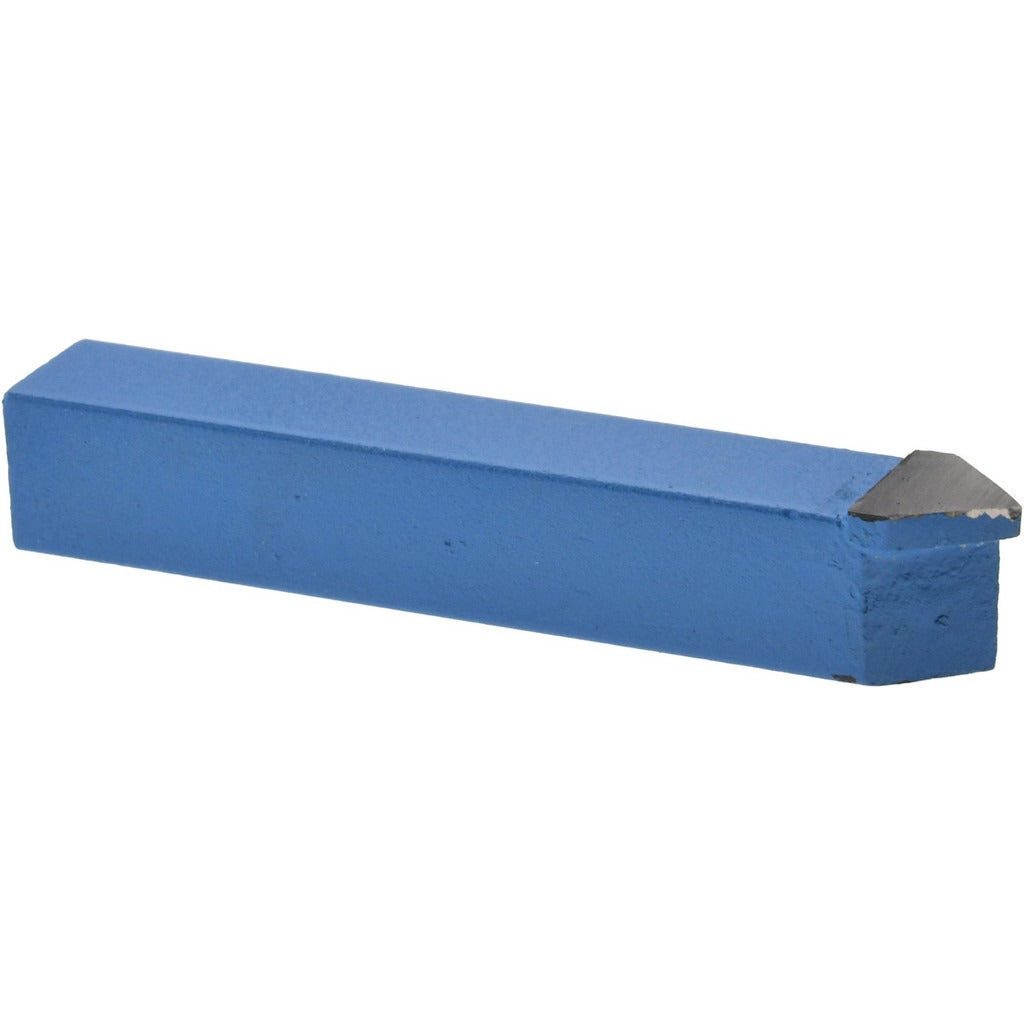

Value Collection 383-3066 Single-point Tool Bit D-10 C6 Carbide

Product Description

The VALUE COLLECTION 383-3066 is a single-point tool bit designed for precision turning and chamfering operations on a lathe. Built to Industry Standard D-10 with a Style D profile, this tool bit features a solid carbide tip rated C6 for hardness and wear resistance. The pointed nose geometry and neutral cutting direction make it suitable for straight turning passes where the cutting force is directed perpendicular to the workpiece axis. The shank measures 5/8 inches in height and 5/8 inches in width, with an overall length of 4 inches. Machinists and toolroom operators select this bit when they need a reliable, dimensionally standard insert-style alternative for general-purpose lathe work on ferrous and non-ferrous materials.

This tool bit is suited for use in manual lathes and CNC turning centers that accept standard square-shank tooling. The neutral cutting direction accommodates both left-hand and right-hand setups depending on tool post orientation. The 80-degree included angle and pointed nose make it particularly effective for chamfering edges, light facing, and contour turning in production and job-shop environments. Machinists working with steel, cast iron, aluminum, and similar materials will find the C6 carbide grade appropriate for moderate cutting speeds and general-purpose material removal.

Key Features

• Industry Standard D-10 classification for direct replacement and standardized tooling setups
• C6 solid carbide tip for improved wear resistance compared to high-speed steel alternatives
• Neutral cutting direction supports flexible tool post orientation
• 80-degree included angle with pointed nose geometry optimized for chamfering applications
• 5/8 inch square shank fits standard tool holders on most bench and engine lathes
• 4-inch overall length provides adequate clearance for typical lathe tool post setups

Compatibility

Designed as a standard D-10 style single-point tool bit for use in lathe tool holders and tool posts that accept 5/8 inch square-shank tooling.

Installation Notes

Installation should be performed by a qualified machinist with the lathe powered down and the spindle locked. Secure the shank fully in the tool holder with appropriate set screws, ensuring the cutting tip is set at the correct center height relative to the workpiece axis before tightening. Inspect the carbide tip for chipping or damage before each use, as cracked carbide can fracture under cutting loads. Follow applicable shop safety procedures and machine manufacturer guidelines when setting tool overhang and feed rates.
