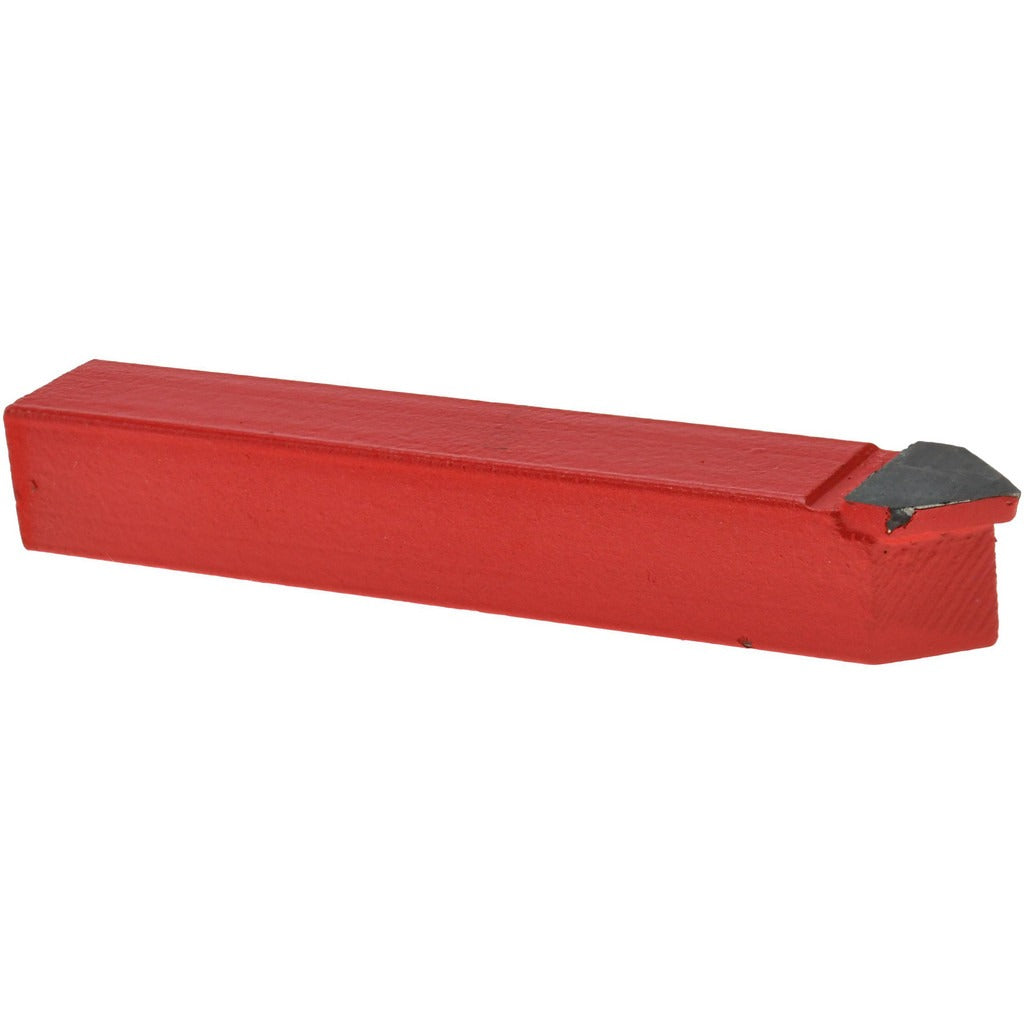

Value Collection 383-3052 D-8 Single-point Carbide Tool Bit

Product Description

The VALUE COLLECTION 383-3052 is a D-style single-point tool bit designed for metal cutting and chamfering operations on manual and CNC lathes. The bit features a pointed nose profile ground to an 80-degree included angle with a neutral cutting direction, making it suitable for straight-in facing and chamfering passes. The tip is solid carbide grade C2, a general-purpose uncoated carbide that handles cast iron, non-ferrous metals, and plastics at moderate cutting speeds. The shank measures 0.5 inches in height and 0.5 inches in width, conforming to ANSI industry standard D-8 toolholder sizing. Overall length is 3.5 inches. Machinists and tool-and-die tradespeople are the primary installers.

This tool bit is used in production and maintenance machining environments where a D-8 standard brazed-carbide bit is required. Typical applications include external chamfering, light facing, and pointed-nose contour work on lathes equipped with D-8 compatible toolholders. The neutral cutting direction suits both right-hand and left-hand setups depending on toolholder orientation. It is appropriate for residential shop, job shop, and light industrial use where C2 carbide grades are specified for the workpiece material.

Key Features

• Solid carbide C2 tip grade for general-purpose cutting of cast iron, non-ferrous metals, and plastics
• D-8 industry standard sizing for drop-in compatibility with D-8 toolholders
• 80-degree included angle pointed nose geometry suited for chamfering and contour work
• Neutral cutting direction for flexible left or right toolholder orientation
• Compact 3.5-inch overall length minimizes overhang and chatter risk
• 0.5-inch square shank cross-section for secure clamping in standard tool posts

Compatibility

Designed as an OEM-style replacement or standard tooling addition for lathes and turning centers accepting D-8 industry standard single-point tool bits with a 0.5-inch square shank.

Installation Notes

Installation is performed by machinists or toolroom technicians familiar with lathe tooling setup. Power down and lock out the machine before seating or adjusting the tool bit in the toolholder. Ensure the cutting edge is set at the correct center height for the workpiece before engaging the spindle. Do not exceed the recommended depth of cut or surface speed for C2 carbide grade on the specific workpiece material.
