Value Collection 383-2052 Single-point Tool Bit C-10 Carbide

Product Description

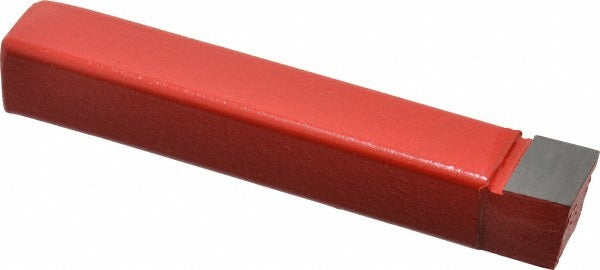

The VALUE COLLECTION 383-2052 is a single-point tool bit designed for precision metal cutting operations on lathes and turning centers. Built to the C-10 industry standard, this Style C bit features a square nose profile and a neutral cutting direction, making it versatile across multiple cutting applications. The shank measures 5/8 inches in both height and width, and the overall length is 4 inches. The cutting tip is solid carbide, grade C2, which delivers reliable wear resistance and edge retention during interrupted and continuous cuts. Machinists and tool-and-die professionals working in production and job-shop environments will find this bit ready to run without additional modification.

This tool bit is suited for general-purpose turning, facing, chamfering, and forming operations on a range of ferrous and non-ferrous materials. Its neutral geometry makes it appropriate for both right-hand and left-hand feed directions depending on setup. The C2 carbide grade is commonly selected for cast iron, non-ferrous metals, and abrasive materials where a harder tip material is needed to maintain edge life. It is a practical choice for shops that need a reliable, industry-standard single-point bit without custom tooling lead times.

Key Features

• C-10 industry standard designation for consistent fit across compatible toolholders
• Style C square nose profile with neutral cutting direction
• Solid carbide C2 grade tip for extended wear resistance
• 5/8 inch by 5/8 inch shank cross-section for rigid setup
• 4 inch overall length suits standard lathe and turning center toolposts
• Rated for chamfering, facing, forming, and turning applications

Compatibility

Designed as an OEM-style replacement and general-use single-point tool bit compatible with C-10 standard toolholders used in lathe and turning center setups.

Installation Notes

Installation is performed by machinists or toolroom personnel. Before mounting, power down and lock out the machine per your facility lockout/tagout procedure. Secure the shank firmly in the toolholder to the appropriate clamping torque specified by the toolholder manufacturer. Verify tool height alignment to centerline before taking the first pass.
