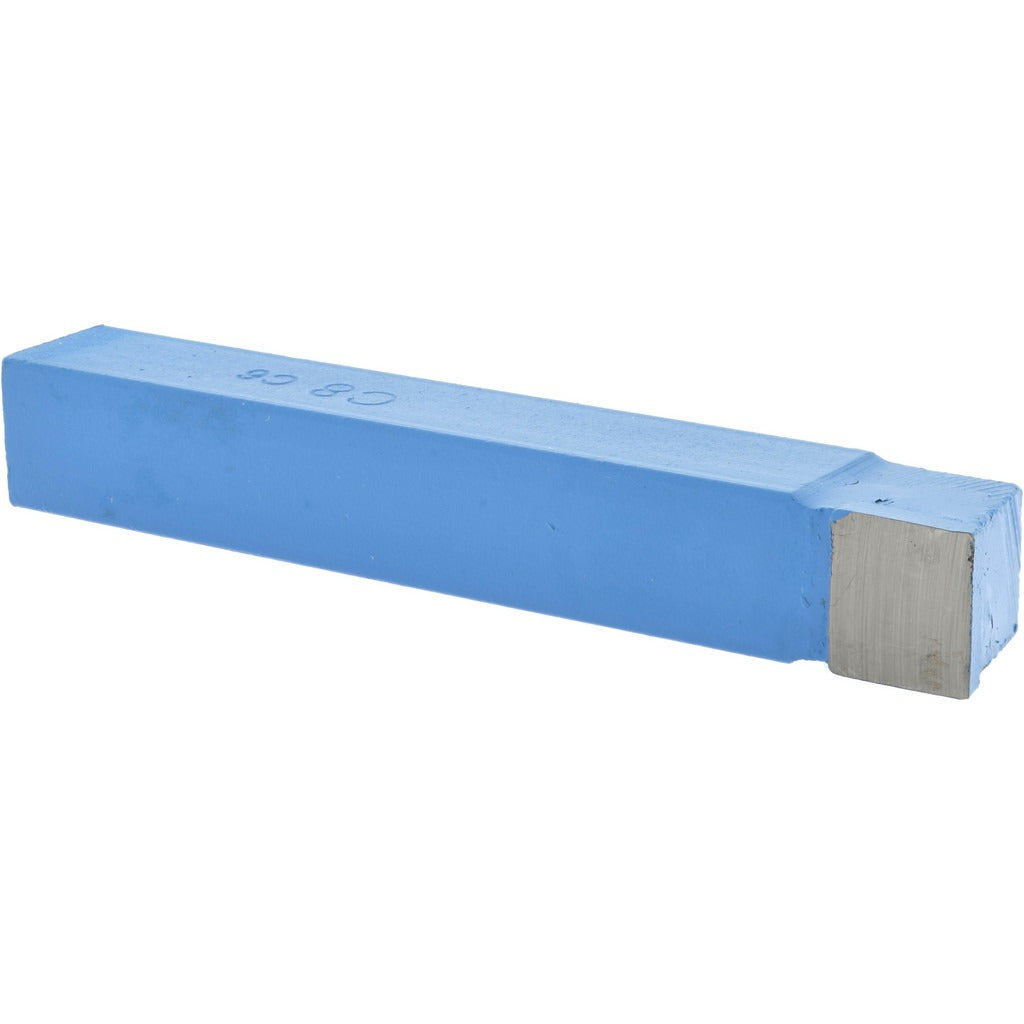

Value Collection 383-2046 C-8 Single-point Tool Bit

Product Description

The VALUE COLLECTION 383-2046 is a single-point tool bit built to the C-8 industry standard for use in metal turning and general-purpose machining operations. It features a square nose profile with a neutral cutting direction, a solid carbide C6-grade tip, and a 0.5-inch by 0.5-inch shank cross-section. The overall length is 3.5 inches. Weighing 0.25 pounds, this tool bit is suited for machinists and toolroom technicians who need a reliable, ready-to-use carbide cutter without regrinding a blank. The C6 carbide grade provides good wear resistance for moderate-speed cutting on steel, cast iron, and similar ferrous materials.

This tool bit is intended for use in lathe and turning center applications where chamfering, facing, forming, and straight turning operations are performed. The neutral cutting direction makes it adaptable for both right-hand and left-hand setups depending on how the bit is oriented in the toolholder. It fits standard tool posts and holders designed for a 0.5-inch shank. This part is sold individually and is appropriate for both production shops and maintenance machining environments.

Key Features

• C-8 industry standard designation for consistent toolholder fitment
• C6 solid carbide tip grade for wear resistance on ferrous and general-purpose materials
• Square nose profile with neutral cutting direction for versatile setup orientation
• 0.5-inch by 0.5-inch shank cross-section fits standard tool posts
• 3.5-inch overall length provides adequate clearance for most lathe configurations
• Supports chamfering, facing, forming, and turning operations

Compatibility

Designed as a standard C-8 style single-point tool bit compatible with tool posts and holders that accept a 0.5-inch square shank.

Installation Notes

Installation is performed by a machinist or toolroom technician. The lathe or turning center must be powered down and locked out before inserting or repositioning the tool bit in the holder. Secure the shank firmly in the tool post at the correct center height before beginning any cut. Inspect the carbide tip for chipping or damage before each use and replace if the cutting edge is compromised.
