Value Collection 383-2026 Single-point Tool Bit C-6 Neutral

Product Description

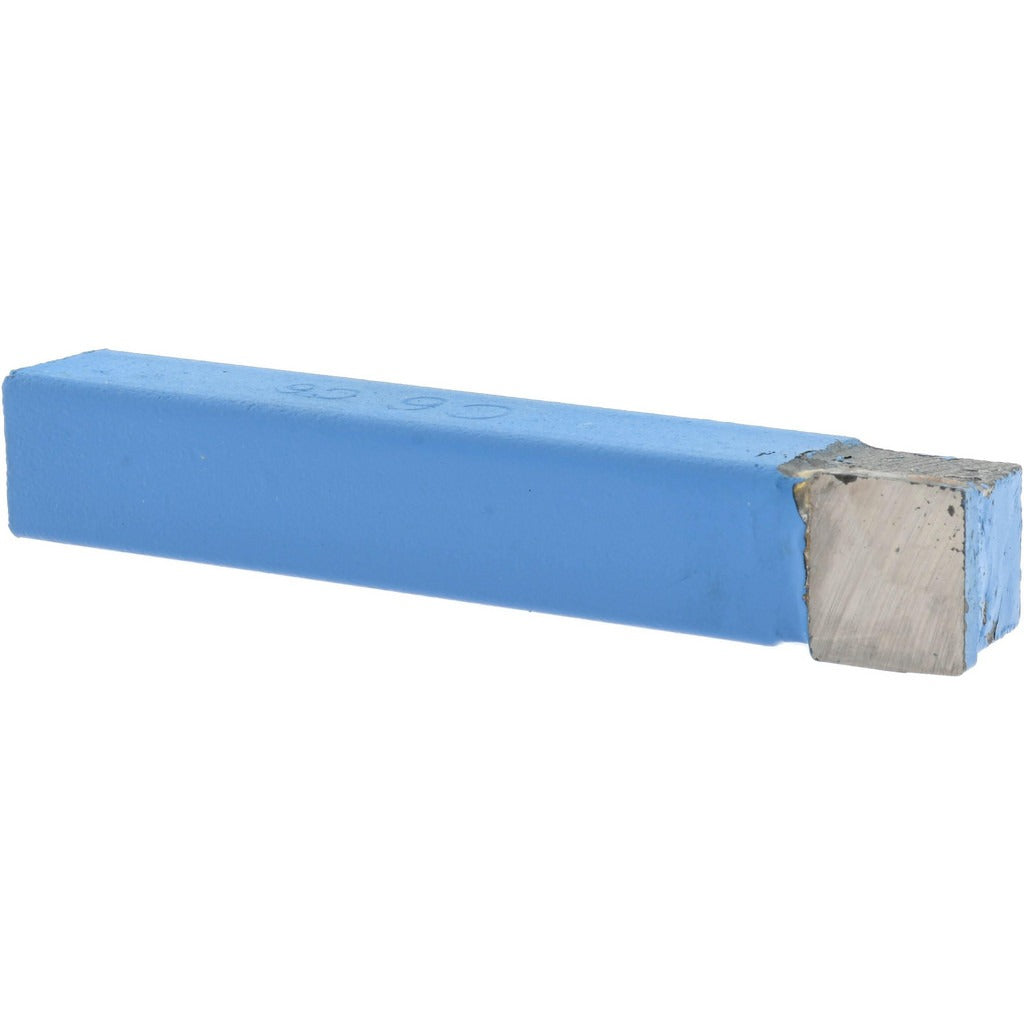

The VALUE COLLECTION 383-2026 is a single-point tool bit designed for precision metal cutting operations on lathes and turning centers. Built with a C6 solid carbide tip brazed to a square-nose, Style C body, this tool bit delivers consistent performance across a range of cutting applications. The shank measures 3/8 inches in both height and width, with an overall length of 2.5 inches. The neutral cutting direction makes it suitable for straight-line cuts without a bias toward left- or right-hand feeding. Machinists and tool-and-die professionals reach for this type of bit when they need a compact, rigid insert alternative for light-to-medium stock removal.

This tool bit is suited for use in small to mid-size manual lathes and CNC turning centers where a 3/8-inch shank tool post or holder is specified. Typical operations include chamfering, facing, forming, and turning on ferrous and non-ferrous workpieces. The C6 carbide grade is a general-purpose classification commonly applied to cast iron, non-ferrous materials, and some steel alloys at moderate cutting speeds. It is a common choice in job shops, maintenance machining environments, and vocational training settings.

Key Features

• C6 solid carbide tip for extended tool life compared to high-speed steel alternatives
• Neutral cutting direction suits straight-in facing and turning passes
• Square-nose geometry supports chamfering, facing, forming, and turning in a single tool
• 3/8 inch by 3/8 inch shank fits standard 3/8-inch tool holders and turrets
• Compact 2.5-inch overall length reduces overhang and vibration in tight setups
• Style C body conforms to industry standard C-6 classification for drop-in replacement sourcing

Compatibility

Designed as an OEM-style replacement or direct substitute for standard C-6 single-point tool bits used in 3/8-inch tool holders on manual and CNC lathes.

Installation Notes

Tool bit installation should be performed by a qualified machinist or toolroom technician with the machine fully powered down and the spindle locked. Secure the shank firmly in the tool post or turret holder, ensuring the tip is set at the correct center height relative to the workpiece axis before tightening. Inspect the carbide tip for cracks or chipping before mounting, as a damaged tip can fail under cutting load. Follow your machine manufacturer guidelines and applicable shop safety procedures when setting up cutting tools.
