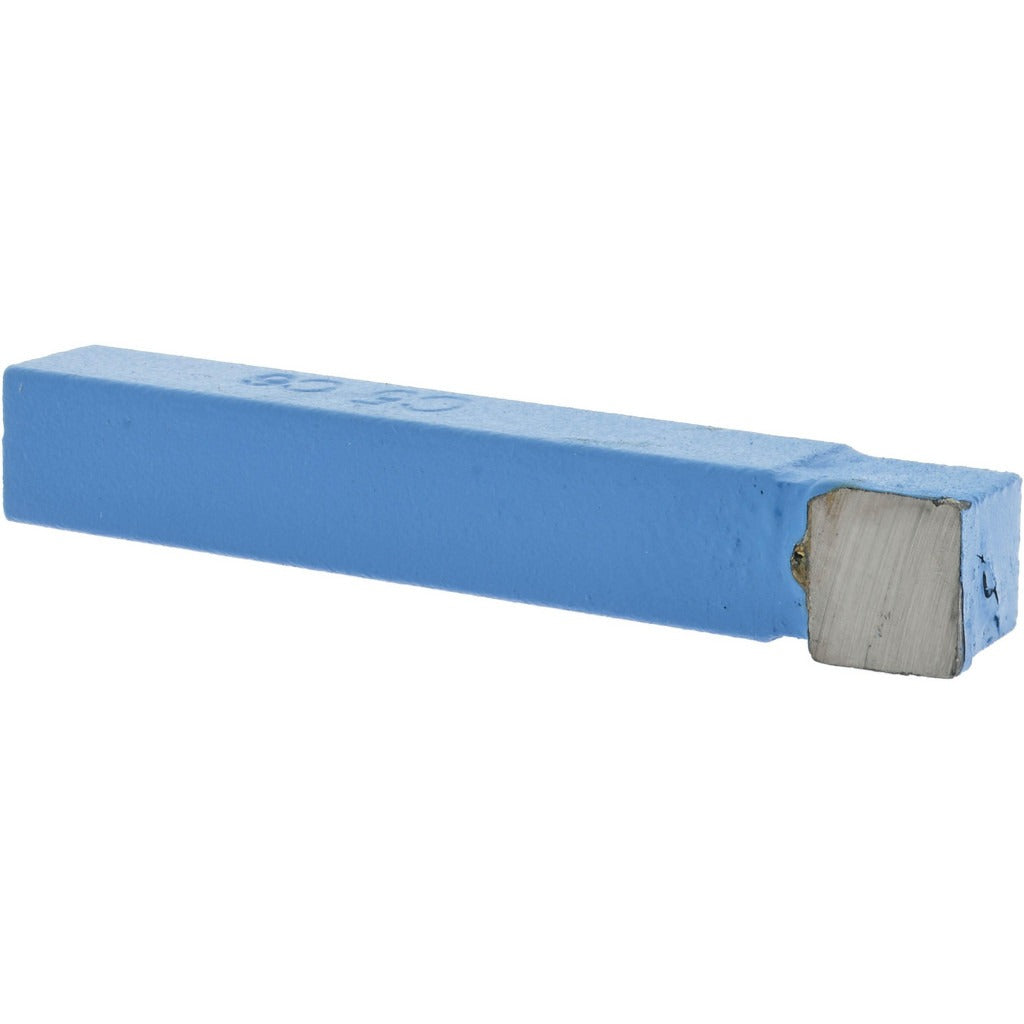

Value Collection 383-2016 Single-point Tool Bit C-5 Carbide

Product Description

The VALUE COLLECTION 383-2016 is a single-point tool bit designed for precision metal cutting operations in lathe and turning applications. Built to Industry Standard Number C-5, this square nose bit features a C6 solid carbide tip and a neutral cutting direction, making it suitable for a range of standard machining tasks. The shank measures 5/16 inches in height and 5/16 inches in width, with an overall length of 2.25 inches. Weighing just 0.09 pounds, it is compact and easy to handle. Machinists and toolroom operators working in production or job-shop environments are the primary users of this bit.

This tool bit is used in lathe and turning center setups for operations including chamfering, facing, forming, and turning on ferrous and non-ferrous workpieces. The neutral cutting direction suits setups where the tool feeds straight into the cut without a left- or right-hand bias. The small shank size makes it appropriate for light-duty and precision work where a compact tool profile is required. It is sold individually and is a direct fit for standard tool holders sized for 5/16-inch shank tooling.

Key Features

• C6 solid carbide tip for wear resistance in chamfering, facing, forming, and turning
• Neutral cutting direction for straight-feed machining setups
• Square nose style per Industry Standard Number C-5
• Compact 5/16-inch square shank and 2.25-inch overall length for tight clearance applications
• Lightweight at 0.09 pounds for easy tool change and handling

Compatibility

Designed as an OEM-style single-point tool bit for use in standard tool holders and turrets accepting a 5/16-inch square shank, consistent with Industry Standard Number C-5.

Installation Notes

Installation is performed by a machinist or toolroom technician. The machine spindle must be fully stopped and the lathe or turning center powered down before seating or removing the tool bit. Ensure the shank is fully seated and clamped in the tool holder to the depth recommended by the holder manufacturer before resuming operation. Follow applicable shop safety procedures and machine-specific setup guidelines when changing tooling.
