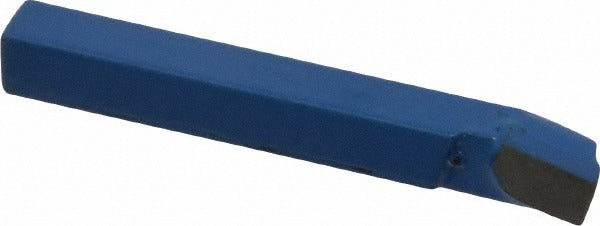

Value Collection 383-1016 BR-4 Carbide Tool Bit 1/4 in

Product Description

The VALUE COLLECTION 383-1016 is a BR-style single-point tool bit conforming to industry standard BR-4. It features a solid carbide tip graded C6, a right-hand cutting direction, and a 15-degree lead angle. The shank measures 1/4 inch in height and 1/4 inch in width, with an overall length of 2 inches. Weighing 0.06 pounds, this compact bit is designed for use on lathes and turning centers where precise material removal is required. Machinists and toolroom technicians install this type of bit when performing boring, chamfering, interrupted cuts, and general turning operations on compatible toolholders.

This tool bit is suited for a range of cutting applications including boring, chamfering, interrupted cuts, and turning on metal workpieces. The BR-4 industry standard designation ensures dimensional compatibility with toolholders and boring bars built to that specification. It is appropriate for both production environments and job-shop setups where a reliable, indexable-style solid carbide bit is needed for right-hand turning passes. The C6 grade carbide tip provides the hardness and wear resistance required for ferrous and non-ferrous materials at moderate to high cutting speeds.

Key Features

• BR-4 industry standard designation for dimensional toolholder compatibility
• C6 grade solid carbide tip for wear resistance and hardness
• 15-degree lead angle for controlled chip formation during turning
• Right-hand cutting direction for standard lathe setups
• Rated for boring, chamfering, interrupted cuts, and turning applications
• Compact 2-inch overall length suits close-tolerance work envelopes

Compatibility

Designed as an OEM-style replacement and standard fit for BR-4 toolholders and boring bar setups requiring a 1/4 inch shank single-point carbide tool bit.

Installation Notes

Installation is typically performed by a machinist or toolroom technician. Power down and lock out the lathe or turning center before seating or replacing any tool bit. Verify that the toolholder set screws and clamping surfaces are clean and free of chips before securing the bit. Follow the machine manufacturer torque and clamping guidelines for the specific toolholder in use.
