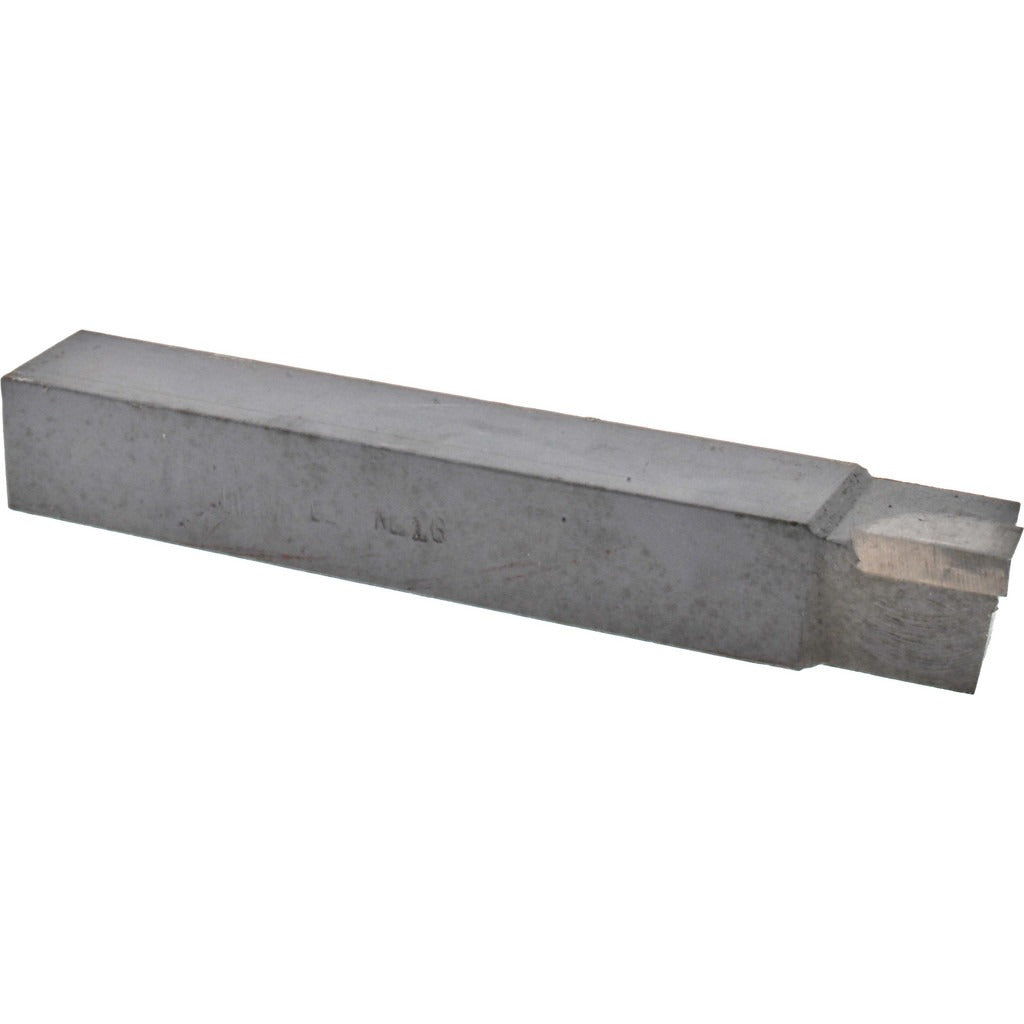

Value Collection 383-0182 Tool Bit AL-16 Left Hand C2 Carbide

Product Description

The VALUE COLLECTION 383-0182 is a single-point tool bit designed for square shoulder turning operations on manual and CNC lathes. Built to the AL-16 industry standard, it features a solid carbide tip rated at grade C2, offering strong wear resistance for general-purpose cutting in steel, cast iron, and similar materials. The shank measures 1 inch in height and 1 inch in width, with an overall length of 6 inches. The left-hand cutting direction makes it suited for specific facing and turning passes where a right-hand bit would not track correctly. Machinists and toolroom professionals are the primary installers and users of this bit.

This tool bit is used in metal-cutting applications including boring, chamfering, and turning on engine lathes, turret lathes, and similar manual or automated turning equipment. It is well suited for production shops and job shops running left-hand cutting passes on medium-duty materials. The AL-16 industry standard designation helps machinists confirm fit with standard tool holders and block holders designed for that size class.

Key Features

• AL-16 industry standard designation for direct holder compatibility verification
• C2 grade solid carbide tip for wear resistance in general-purpose turning
• Left-hand cutting direction for facing and turning passes requiring reverse tool travel
• Square shoulder turning geometry for clean shoulder transitions
• 1 inch x 1 inch shank cross-section for rigid tool block seating
• Supports boring, chamfering, and turning cutting applications

Compatibility

Designed for use in standard AL-style tool holders and block holders that accept the AL-16 size class in manual and CNC lathe turning setups.

Installation Notes

This tool bit is installed and set up by machinists following standard lathe tooling procedures. Power down and lock out the lathe spindle before seating or adjusting the tool bit in the holder. Ensure the bit is clamped securely and the cutting edge is set to the correct center height before beginning any cutting pass. Inspect the carbide tip for chips or cracks before each use and replace if the cutting edge is compromised.
