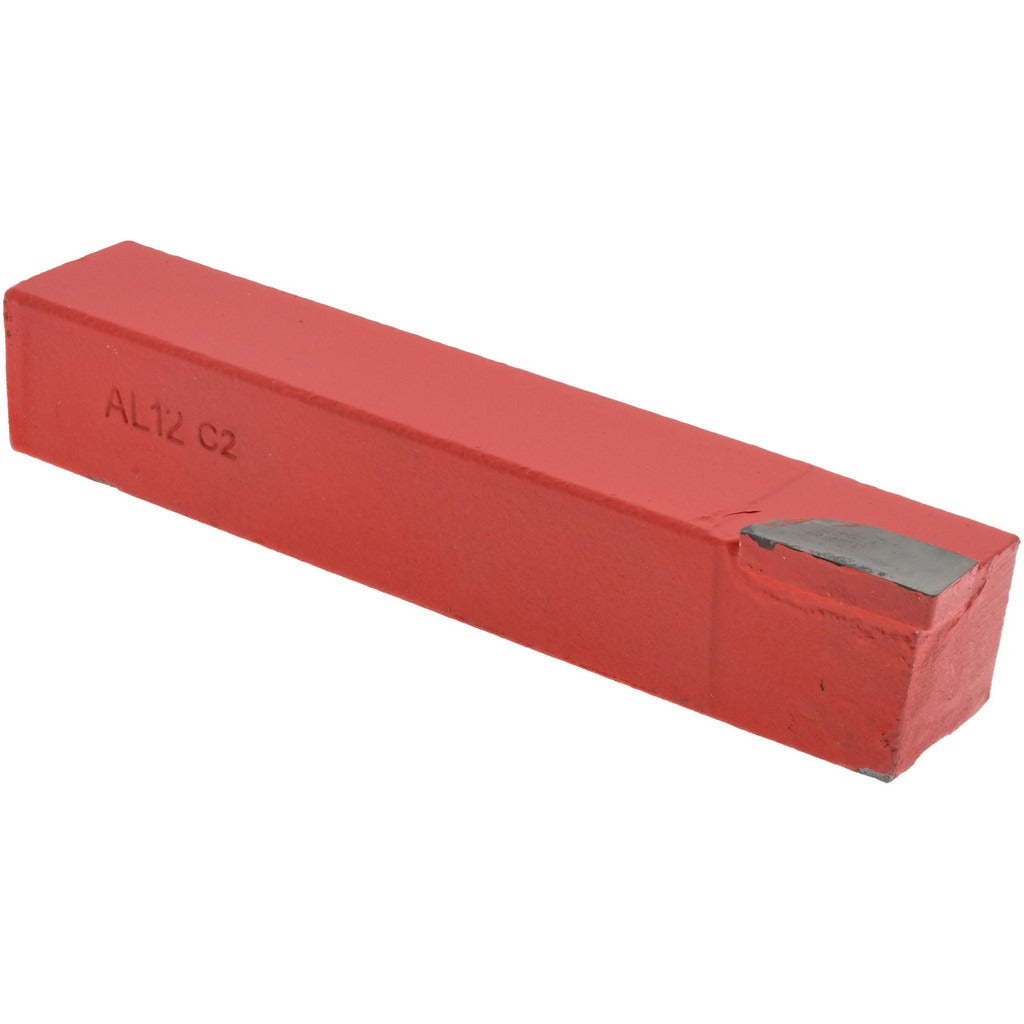

Value Collection 383-0172 Single-point Tool Bit AL-12

Product Description

The VALUE COLLECTION 383-0172 is a single-point tool bit built to AL-12 industry standard specifications for square shoulder turning operations. The bit features a solid carbide tip rated at C2 grade, delivering consistent hardness and wear resistance in demanding cutting environments. The shank measures 3/4 inches in height and 3/4 inches in width, with an overall length of 4.5 inches. Left-hand cutting direction suits specific turning setups where conventional right-hand tooling is not practical. Machinists and tool-and-die professionals install this bit in compatible square-shank tool holders on manual and CNC lathes.

This tool bit is suited for boring, chamfering, and turning operations in metal fabrication and machining shops. It is appropriate for use on ferrous and non-ferrous workpieces where a C2 carbide grade provides an effective balance of toughness and wear resistance. The AL-style geometry and left-hand cutting direction make it a practical choice when facing or turning toward the tailstock or in setups requiring reverse cutting motion. This is a single-unit item with a minimum order quantity of one.

Key Features

• C2 solid carbide tip for wear resistance in turning and boring applications
• Left-hand cutting direction for reverse or tailstock-facing setups
• AL-12 industry standard number for straightforward replacement sourcing
• Square shoulder turning geometry for clean shoulder and facing cuts
• 3/4 inch by 3/4 inch shank for secure seating in standard square-shank holders
• 4.5-inch overall length compatible with common lathe tool posts

Compatibility

Designed as a direct-fit replacement for AL-12 style single-point tool bits used in standard square-shank tool holders accepting 3/4 inch shank tooling.

Installation Notes

Installation is performed by a machinist or qualified toolroom technician. Ensure the lathe is powered off and the spindle is fully stopped before changing or setting tool bits. Secure the shank in the tool holder using the appropriate set screws and verify correct tool height relative to the workpiece centerline before operation. Cutting speeds and feeds should be selected based on workpiece material and machine capabilities.
