Value Collection 383-0072 AR-12 Tool Bit C2 Carbide

Product Description

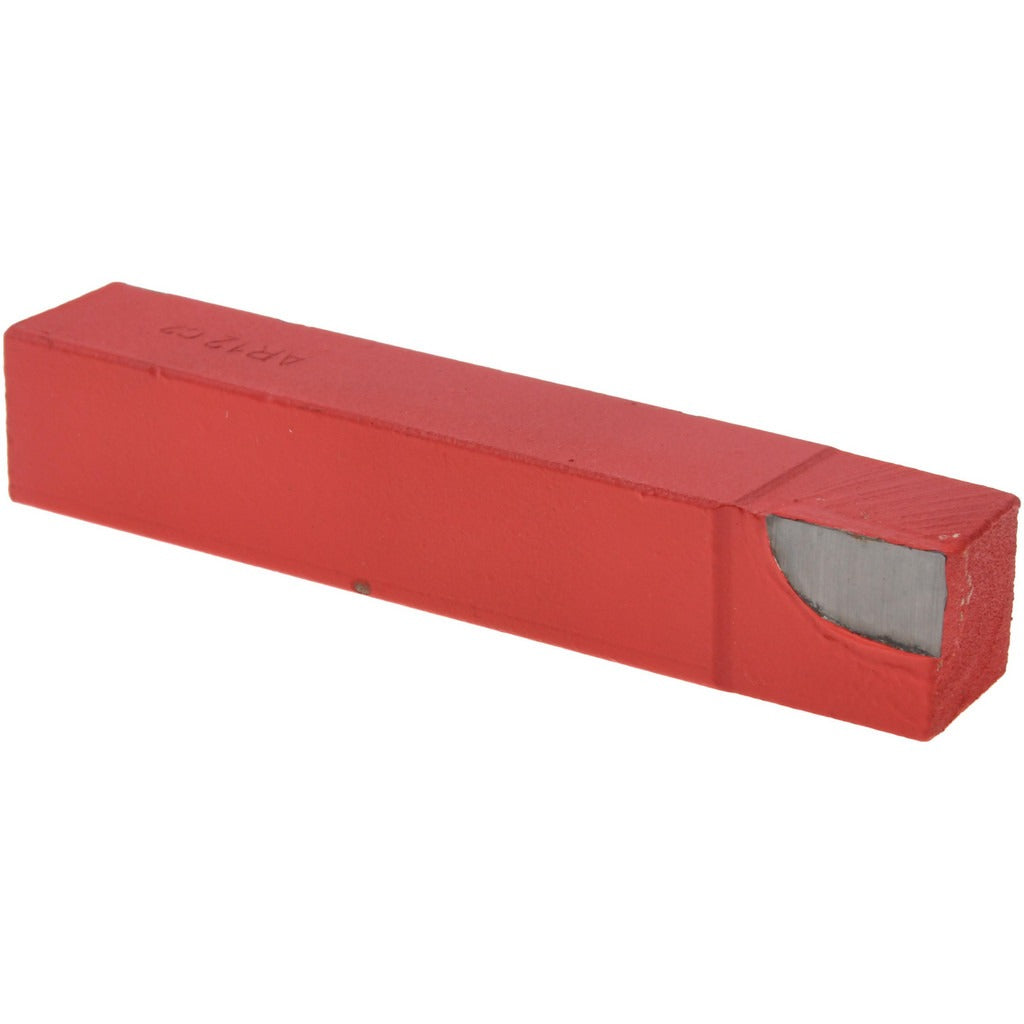

The VALUE COLLECTION 383-0072 is an AR-style, single-point tool bit built for square shoulder turning operations on metal lathes and boring applications. It features a solid carbide tip rated to C2 grade, offering strong wear resistance and edge retention for general-purpose ferrous and non-ferrous cutting. The shank measures 3/4 inches in height and 3/4 inches in width, with an overall length of 4.5 inches. The right-hand cutting direction makes it compatible with standard lathe setups where the tool feeds from right to left. This bit is suited for machinists and tool-and-die professionals working in production or job-shop environments.

The 383-0072 is designed for use in boring, chamfering, and turning operations. Its AR-12 industry standard designation makes it a direct fit for tool holders dimensioned to that standard. The C2 carbide grade is well-suited for cutting cast iron, non-ferrous metals, and similar materials at moderate cutting speeds. It installs in a standard square-shank tool post or boring bar holder and is appropriate for both manual and CNC lathe applications requiring precise, repeatable cuts.

Key Features

• AR-12 industry standard designation for consistent holder fitment
• C2 grade solid carbide tip for wear resistance on general-purpose materials
• Right-hand cutting direction for standard lathe feed orientation
• Square shoulder turning geometry supports boring, chamfering, and turning
• 3/4 inch by 3/4 inch shank provides rigid support in compatible tool posts
• 4.5 inch overall length suits standard lathe clearance requirements

Compatibility

Designed as an OEM-style replacement or direct-fit tool bit for square-shank tool holders and boring bar setups dimensioned to the AR-12 industry standard.

Installation Notes

Installation is performed by a machinist or toolroom technician. Power down and lock out the lathe before seating or removing any tool bit. Secure the shank fully within the tool holder to the correct depth before tightening set screws. Follow shop safety procedures and applicable OSHA machining guidelines when handling carbide-tipped tooling.
