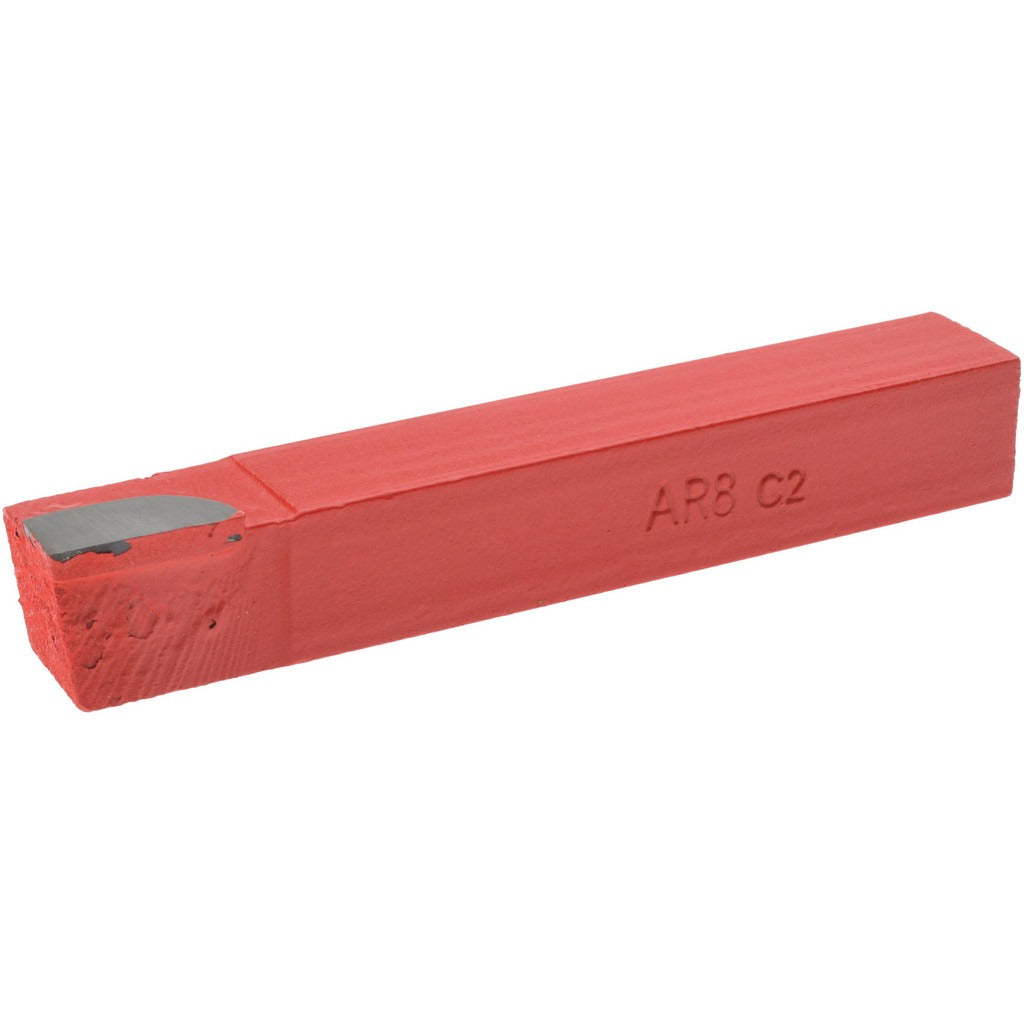

Value Collection 383-0052 AR-8 Single-point Tool Bit

Product Description

The VALUE COLLECTION 383-0052 is a right-hand single-point tool bit built to the AR-8 industry standard. It features a solid carbide tip graded C2, making it suitable for interrupted cuts and general-purpose machining on cast iron, non-ferrous metals, and similar materials. The shank measures 1/2 inch in height and 1/2 inch in width, with an overall length of 3.5 inches. The square shoulder turning geometry delivers clean, precise cuts at the tool-to-workpiece interface. Machinists and tool-and-die professionals install this style of bit in standard tool holders on engine lathes and turret lathes.

This tool bit is designed for boring, chamfering, and turning operations in shop and production environments. The AR-style single-point configuration is common in both job-shop and production turning setups where consistent chip control and dimensional accuracy are required. The right-hand cutting direction means material is fed from right to left on a standard engine lathe. It suits light to medium-duty cutting passes on a range of workpiece materials appropriate for C2-grade carbide.

Key Features

• AR-8 industry standard designation for direct tool holder compatibility
• C2 solid carbide tip for durability and wear resistance in general-purpose turning
• Square shoulder turning geometry for clean shoulder and facing cuts
• Right-hand cutting direction for standard lathe feed orientation
• Supports boring, chamfering, and turning applications
• Compact 3.5-inch overall length for use in close-clearance setups

Compatibility

Designed as a standard AR-8 single-point tool bit for use in compatible AR-style tool holders on engine lathes and turret lathes accepting a 1/2-inch shank.

Installation Notes

Installation is performed by a qualified machinist. Ensure the lathe is powered off and the chuck is secured before seating the tool bit in the holder. Set tool height to centerline of the workpiece before beginning any cut. Do not exceed the cutting parameters appropriate for C2-grade carbide and the workpiece material being machined.
