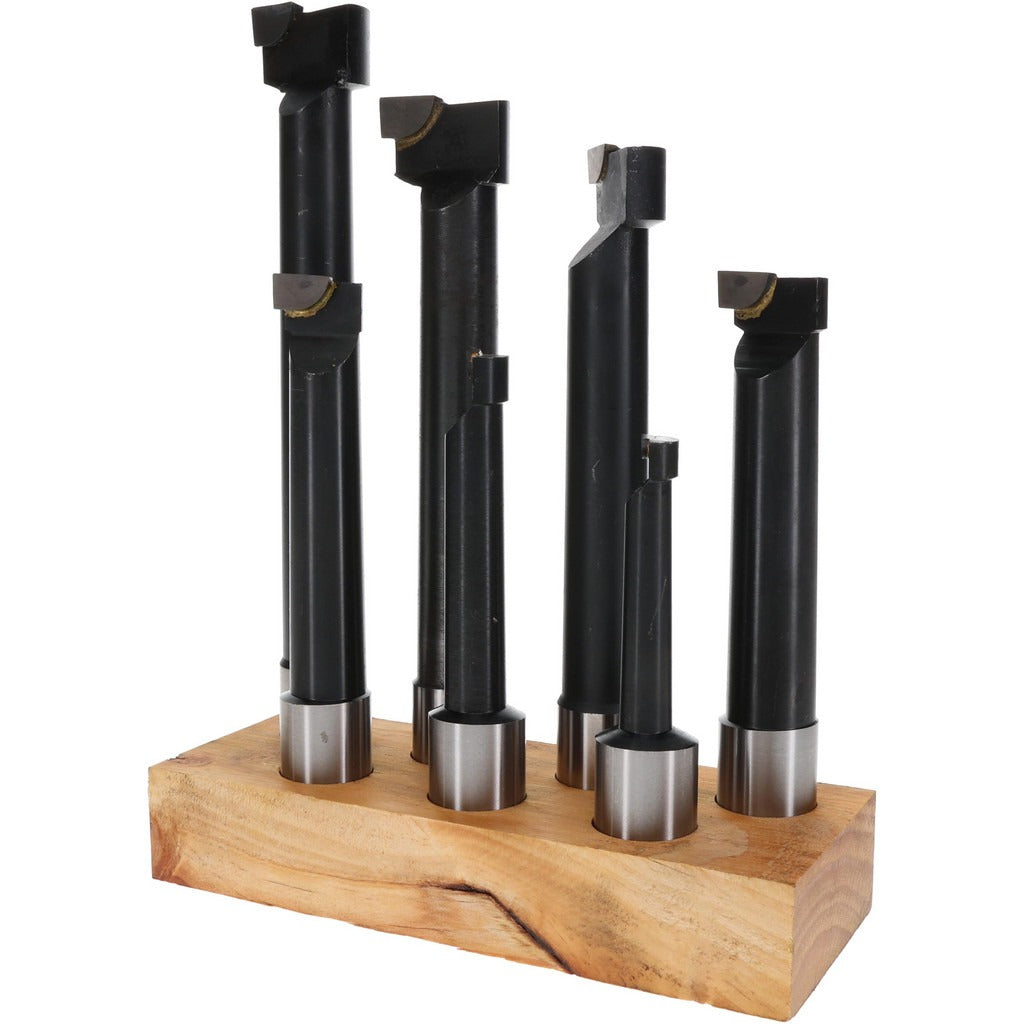

Value Collection 375-1802 Boring Bar Set 7 Piece C2 Carbide

Product Description

The VALUE COLLECTION 375-1802 is a 7-piece C2 carbide-tipped boring bar set designed for internal boring operations on metalworking lathes and machining centers. The set spans a minimum bore diameter range of 9/16 inch on the smallest bar up to 1-5/8 inches on the largest bar, with maximum bore depths ranging from 3 inches to 7-1/2 inches across the set. All bars feature a 5/16-inch shank diameter and overall lengths from 5 to 9-1/2 inches. The right-hand cutting direction and uncoated bright finish make these bars straightforward to identify and deploy. Machinists and toolroom technicians are the primary users of this type of set.

This boring bar set suits general-purpose internal diameter finishing and roughing in machine shop environments, including job shops, maintenance departments, and production toolrooms. The range of bar sizes in the set allows a single technician to address a variety of bore diameters and depths without sourcing individual bars separately. The included wood stand keeps bars organized and protected at the workstation. This set is appropriate for use on steel, cast iron, and similar ferrous materials where C2 carbide grade tooling is recommended.

Key Features

• 7-piece set covers minimum bore diameters from 9/16 inch to 1-5/8 inches
• Maximum bore depth range: 3 inches (smallest bar) to 7-1/2 inches (largest bar)
• C2 carbide-tipped cutting edges for durability on ferrous materials
• Right-hand cut configuration for standard lathe boring operations
• Uncoated finish for easy inspection and reconditioning
• Wood stand included for organized bench storage

Compatibility

Designed as a general-purpose replacement and toolroom boring bar set compatible with lathes and machining centers that accept a 5/16-inch round shank boring bar.

Installation Notes

Boring bars in this set should be installed by a qualified machinist or toolroom technician familiar with lathe tooling setup. Ensure the machine spindle is fully stopped and the machine is powered down before mounting or adjusting any boring bar. Bars must be properly supported in the tool holder with minimal overhang beyond what the job requires to reduce chatter and deflection. Follow the machine manufacturer guidelines and applicable shop safety standards when setting tool height and securing the shank.
