Value Collection 365-3800 Hex Pipe Die 1-11 Bspt

Product Description

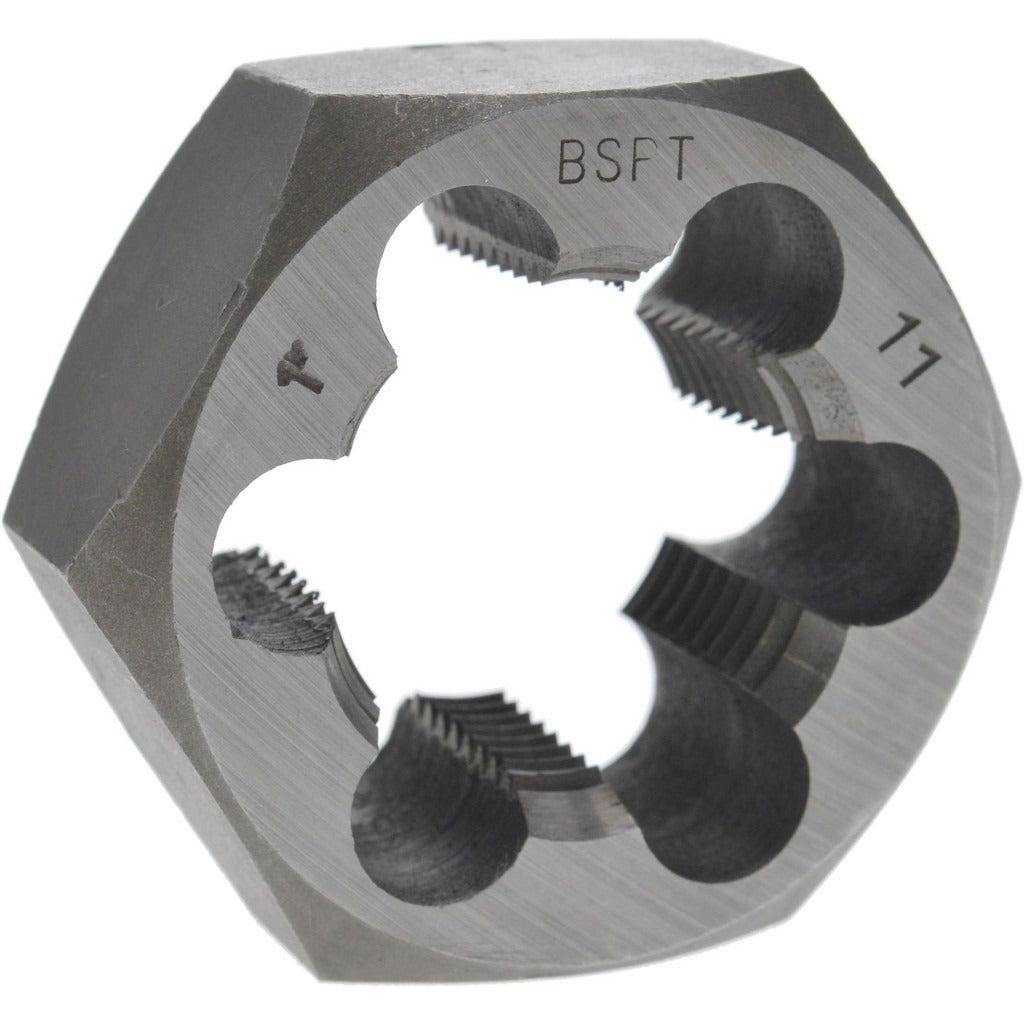

The VALUE COLLECTION 365-3800 is a hex pipe die used to cut external BSPT (British Standard Pipe Taper) threads on pipe and round stock. It is designed for use in a standard hex pipe die stock and produces a 1-11 thread — meaning 1-inch nominal diameter at 11 threads per inch — with a right-hand thread direction. Constructed from carbon steel, this die is suited for threading ferrous pipe in plumbing, pipefitting, and general mechanical applications. Licensed plumbers and pipefitters are the primary installers. The 2-3/8 inch hex outer diameter fits corresponding hex die stocks.

This die is appropriate for threading 1-inch nominal pipe in residential and commercial plumbing and pipefitting work where BSPT threads are specified. BSPT is common in international plumbing systems, industrial fluid lines, and compressed air distribution. It is used in shop and field settings wherever pipe must be threaded to BSPT specifications. The right-hand thread direction is standard for most pipe assembly work.

Key Features

• Cuts 1-11 BSPT external threads on 1-inch nominal pipe
• Right-hand thread direction for standard pipe assembly
• 2-3/8 inch hex outer diameter fits standard hex die stocks
• Carbon steel construction for threading ferrous pipe materials
• UNSPSC Code 27112805 for procurement and catalog compatibility

Compatibility

Designed for use in hex pipe die stocks accepting a 2-3/8 inch hex outer diameter. Suitable for cutting 1-11 BSPT threads on 1-inch nominal pipe and round stock in standard threading operations.

Installation Notes

Hex pipe dies are installed and used by licensed plumbers and pipefitters. Secure the pipe firmly in a pipe vise before threading. Apply cutting oil generously during the threading process to extend die life and produce clean threads. Inspect the die for wear or damage before use and replace if cutting edges appear dull or chipped.
