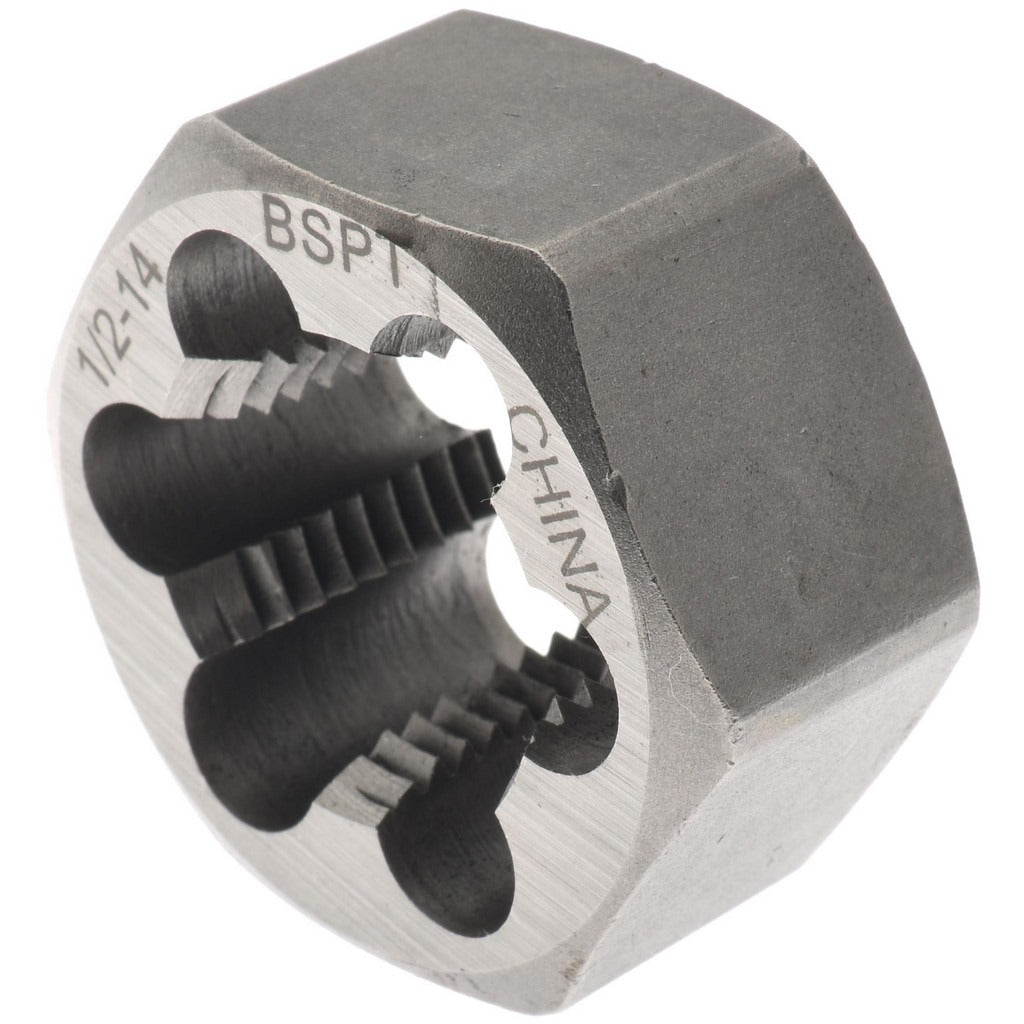

Value Collection 365-3732 Hex Pipe Die 1/2-14 Bspt

Product Description

The VALUE COLLECTION 365-3732 is a hex pipe die designed to cut 1/2-14 BSPT (British Standard Pipe Taper) external threads on pipe and pipe fittings. Manufactured from carbon steel, it delivers the hardness and edge retention needed for consistent thread cutting on steel and iron pipe stock. The 1-5/8 inch hex outer diameter allows it to seat securely in standard die stocks and threading handles sized for that hex. Right-hand thread direction follows the standard convention for most pipe threading applications. This die is a core tool for plumbers, pipefitters, and mechanical contractors working with BSPT-threaded systems.

This die is suited for trade professionals threading pipe for BSPT-standard systems, which are common in imported equipment, hydraulic assemblies, and international-specification plumbing and instrumentation installations. The 1/2-14 thread size corresponds to nominal 1/2 inch pipe with 14 threads per inch on a tapered profile. It is appropriate for both shop fabrication and field threading where a compatible die stock is available. Typical users include plumbers, pipefitters, and industrial maintenance technicians cutting threads for fluid-handling and pressure system connections.

Key Features

• 1/2-14 BSPT thread form for compatibility with British Standard Pipe Taper specifications
• Carbon steel construction provides hardness suited for threading steel and iron pipe
• 1-5/8 inch hex OD seats in standard die stocks designed for that hex size
• Right-hand thread direction matches standard pipe threading convention
• Sold individually — one die per package

Compatibility

Designed for use in die stocks and threading handles that accept a 1-5/8 inch hex pipe die. Cuts 1/2-14 BSPT external threads. No additional compatible model or part number data was provided in the product input.

Installation Notes

Pipe threading with this die should be performed by a qualified plumber or pipefitter using a properly sized die stock. Always secure the workpiece in a pipe vise before threading and apply cutting oil continuously during the threading operation to extend die life and produce clean thread form. Inspect the die for chips or damage before each use. Where BSPT threads are used in pressure-bearing systems, verify that the thread engagement and sealing method meet the requirements of the applicable code or equipment specification.
