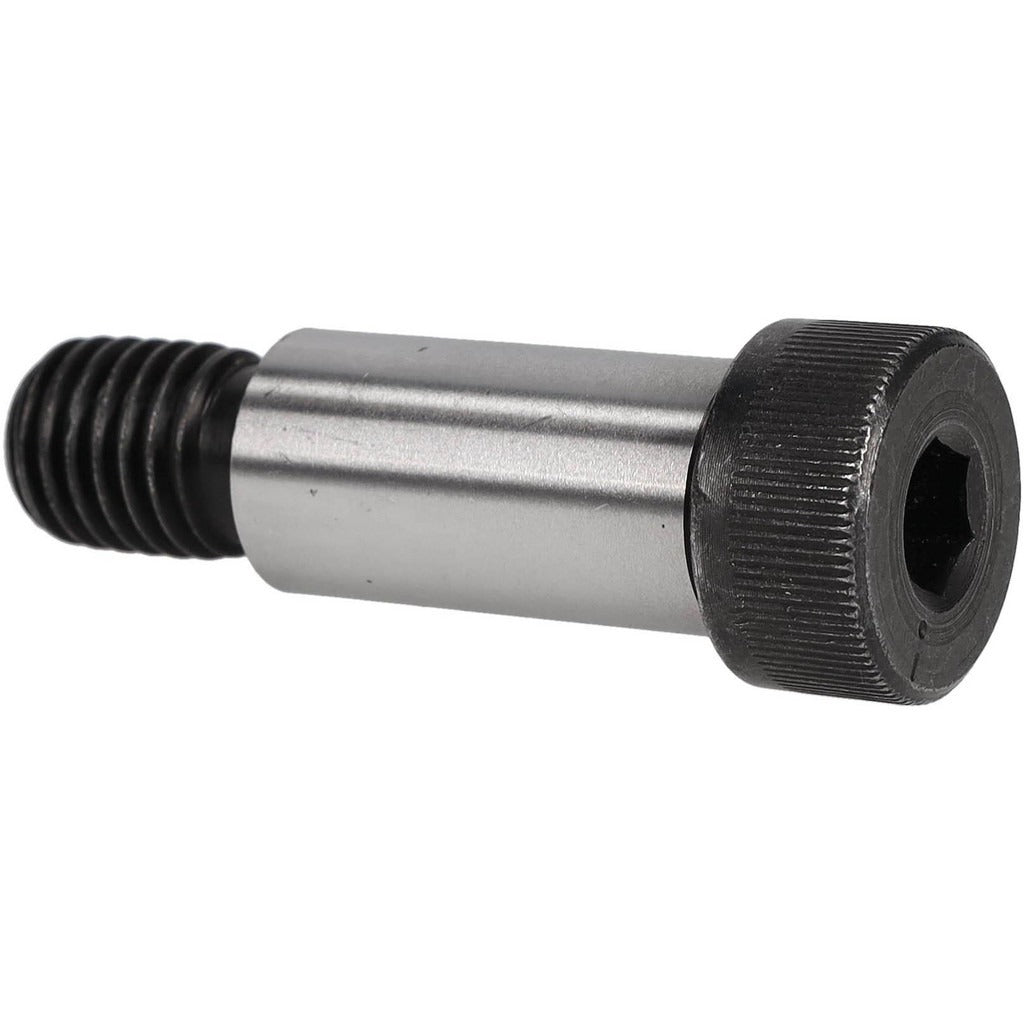

Value Collection 362-1224-01 Shoulder Screw Alloy Steel

Product Description

The VALUE COLLECTION 362-1224-01 is a Grade 8 alloy steel shoulder screw designed for precision fastening applications where a smooth, hardened bearing surface is required. The screw features a 0.75 inch shoulder diameter and a 1.5 inch shoulder length, providing a precise shaft for bushings, bearings, or pivot points. The 5/8-11 UNC threaded section secures the fastener in tapped holes, while the 3/8 inch hex socket drive allows installation with a standard hex key. This fastener is installed by machinists, maintenance technicians, and industrial mechanics in machine assembly, tooling, and mechanical linkage applications.

This shoulder screw is suited for industrial and manufacturing environments where a controlled-diameter shank is needed to guide moving components or serve as a fixed pivot. The Grade 8 alloy steel construction provides high tensile strength and wear resistance. It meets ANSI B18.3 and BS 2470 standards, making it appropriate for use in precision-machined assemblies, jigs, fixtures, and mechanical linkages in both light and heavy industrial settings.

Key Features

• 0.75 inch shoulder diameter with 1.5 inch shoulder length for precise bearing-surface fitment
• 5/8-11 UNC thread for secure engagement in standard tapped holes
• Grade 8 alloy steel construction for high tensile strength and durability
• 3/8 inch hex socket drive for installation with a standard hex key or T-handle
• 1 inch head diameter and 0.5 inch head height provide a broad seating surface
• Meets ANSI B18.3 and BS 2470 dimensional standards

Compatibility

Designed as a standard shoulder screw for use in machined assemblies, jigs, fixtures, and pivot applications that require a 0.75 inch diameter precision shoulder and a 5/8-11 UNC threaded shank conforming to ANSI B18.3 and BS 2470 specifications.

Installation Notes

Installation is performed by machinists or maintenance technicians using a 3/8 inch hex key or socket driver. Ensure the receiving tapped hole meets 5/8-11 UNC thread specifications and is clean and free of debris before installation. Do not use the shoulder screw as a structural load-bearing fastener in applications exceeding the rated capacity of Grade 8 alloy steel. Torque to the value specified in the applicable engineering drawing or assembly specification for the host machine.
