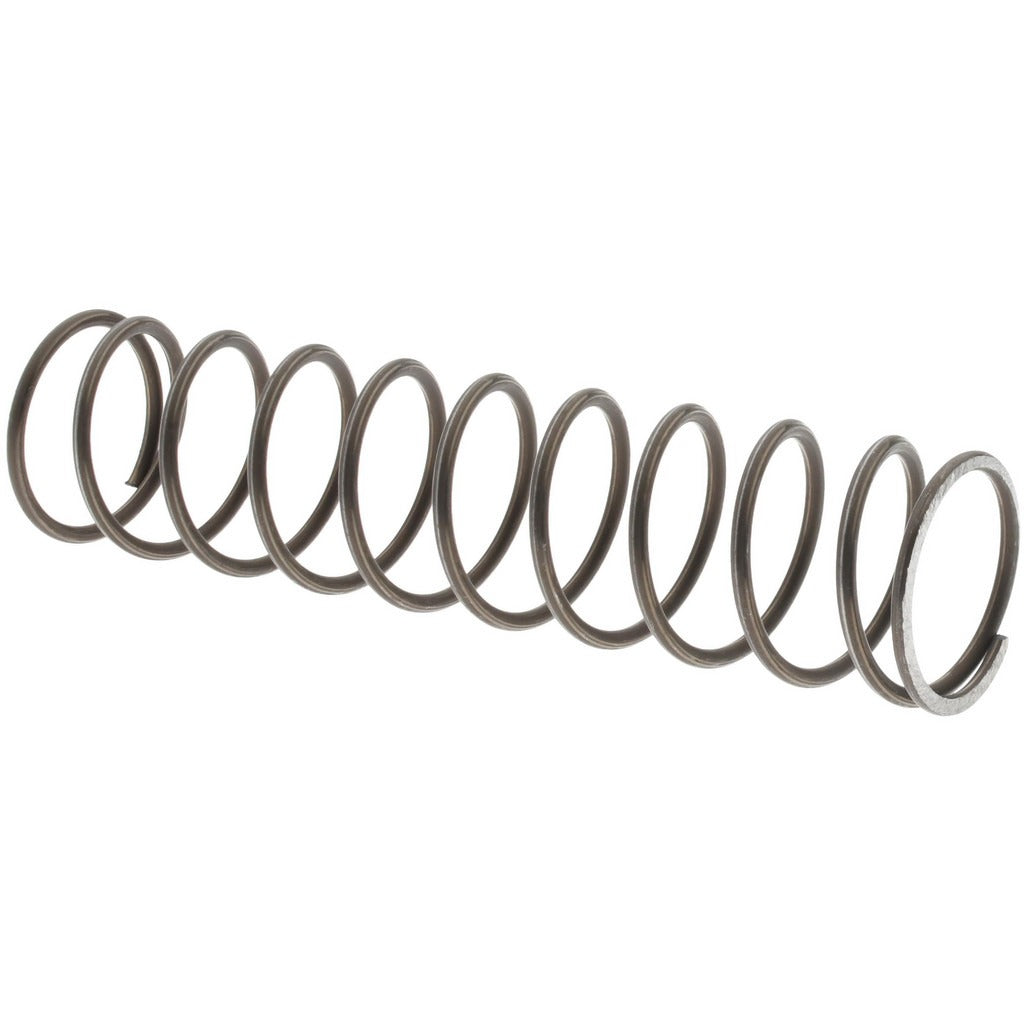

Value Collection 36085181 Compression Spring 100 Pack

Product Description

The VALUE COLLECTION 36085181 is a music wire compression spring designed for light-duty mechanical, industrial, and equipment applications requiring consistent return force over repeated cycles. The spring measures 0.6 inches in outside diameter with a free length of 2.5 inches and a wire diameter of 0.047 inches (1.19 mm). It delivers a spring rate of 4.59 pounds per inch and a maximum work load of 9.06 pounds (40.3 N), making it suitable for moderate-load spring return and positioning tasks. Music wire construction provides good tensile strength and fatigue resistance for dynamic cycling applications. This listing includes a package quantity of 100 springs.

This compression spring is used across a broad range of mechanical assemblies including HVAC equipment components, valve return mechanisms, actuator assemblies, latching hardware, and light manufacturing fixtures. It is appropriate for both residential and commercial applications wherever a small-format, open-coil compression spring with consistent load characteristics is required. Technicians and assemblers working with precision mechanical components will find this spring suited to repetitive-use installations where dimensional consistency across the package quantity matters.

Key Features

• 0.6 inch outside diameter for compatibility with common small-bore spring pockets and guides
• 2.5 inch free length provides adequate working travel for typical return-force applications
• Spring rate of 4.59 pounds per inch allows predictable load deflection behavior
• Maximum work load of 9.06 pounds (40.3 N) suits light to moderate mechanical loads
• Music wire construction offers good fatigue life under dynamic cycling conditions
• Solid height of 0.526 inches (13.37 mm) defines the fully compressed limit
• Sold in a package of 100 springs for service stock or production use

Compatibility

Designed as a general-purpose replacement or service stock compression spring for mechanical assemblies requiring a 0.6 inch OD, 2.5 inch free length, music wire spring with a 4.59 pounds per inch spring rate.

Installation Notes

Compression springs of this type are installed by mechanical technicians, HVAC service professionals, and assembly personnel working on spring-loaded components and actuator mechanisms. De-energize or depressurize any system before replacing a spring in a live assembly. Verify that the spring pocket or guide bore is dimensionally compatible with the 0.6 inch OD and that the installed working height does not exceed the solid height of 0.526 inches. Do not exceed the rated maximum work load of 9.06 pounds during installation or operation.
