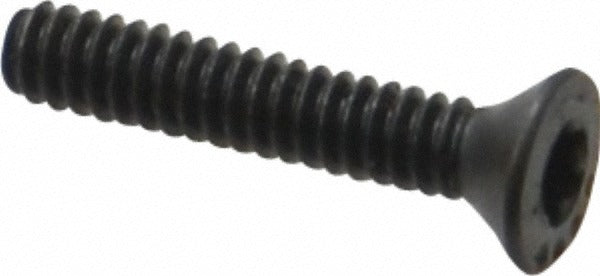

Value Collection 354-5612-01 Flat Socket Cap Screw 6-32

Product Description

The VALUE COLLECTION 354-5612-01 is a flat socket cap screw designed for flush or countersunk fastening applications in metal assemblies. It features a Torx Plus drive with a T15 bit size and an 82-degree flat head profile that sits flush with or below the mating surface when properly seated. The screw is fully threaded along its 3/4-inch overall length, cut to a 6-32 UNC thread standard. Manufactured from alloy steel with a black oxide finish, it offers solid mechanical strength and moderate corrosion resistance in controlled environments. Licensed electricians, HVAC technicians, and mechanical assemblers working on panel enclosures, equipment housings, and machinery frames will encounter this fastener type regularly.

This screw is suited for general industrial and mechanical assembly work where a low-profile, flush-mount fastener is required. The 6-32 thread size is common in electronics enclosures, control panels, light-duty structural brackets, and equipment covers. The black oxide finish reduces light reflection and provides a degree of surface protection in dry or lightly humid indoor settings. The Torx Plus drive resists cam-out better than Phillips or slotted drives, which is an advantage in production or repetitive assembly environments.

Key Features

• 82-degree flat head profile for flush or countersunk seating
• Torx Plus drive, T15 size, reduces cam-out during installation
• Fully threaded 6-32 UNC over 3/4-inch overall length
• Alloy steel construction for reliable mechanical strength
• Black oxide finish for low-glare appearance and mild surface protection
• Meets ASME/ANSI B18.3 and ASTM F835 fastener standards

Compatibility

Designed as a standard 6-32 UNC fully threaded flat socket cap screw compatible with countersunk holes machined to an 82-degree included angle in metal panels, enclosures, and equipment housings requiring a flush fastener profile.

Installation Notes

Install using a T15 Torx Plus bit and appropriate driver. Ensure the mating hole is machined or stamped to an 82-degree countersink angle to achieve proper head seating. Power down and de-energize any equipment before working on electrical enclosures or control panels. Follow applicable torque guidelines from your assembly specification or equipment service manual, as no torque value is specified for this part in the available data.
