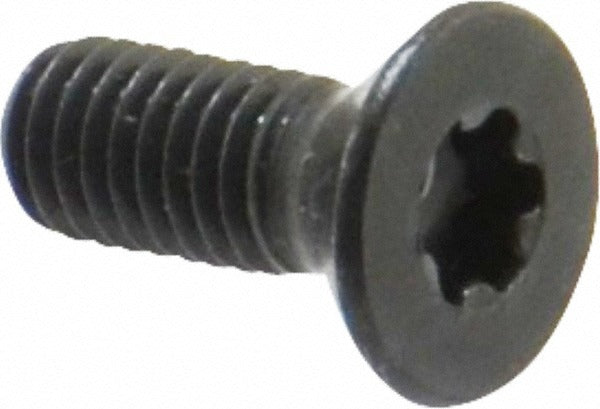

Value Collection 354-2308-01 Flat Socket Cap Screw 10-32

Product Description

The VALUE COLLECTION 354-2308-01 is a 10-32 x 1/2 inch flat socket cap screw designed for precision fastening in mechanical assemblies, fixtures, and equipment panels. It features an 82-degree flat head profile with a Torx Plus T25 drive, offering improved torque transfer and reduced cam-out compared to standard hex socket drives. The body is fully threaded alloy steel finished in black oxide, which provides mild corrosion resistance and a low-reflectance appearance. This fastener is well-suited for applications where a flush or countersunk installation is required. Machinists, maintenance technicians, and assembly professionals are the primary installers.

This screw is used in light industrial, mechanical, and OEM assembly applications where a countersunk fastener profile is needed. The 10-32 UNF thread and 1/2 inch overall length make it a common choice for thin panel mounting, fixture assembly, and equipment enclosures. It conforms to ASME/ANSI B18.3 and ASTM F835 standards, making it appropriate for applications with dimensional and material traceability requirements. Sold individually with a minimum order quantity of 100 pieces.

Key Features

• 82-degree flat head profile for flush countersunk installation
• Torx Plus T25 drive for high torque transfer and reduced cam-out
• Fully threaded 10-32 UNF alloy steel body
• Black oxide finish for mild corrosion resistance and low reflectance
• Meets ASME/ANSI B18.3 and ASTM F835 fastener standards

Compatibility

Designed as a standard 10-32 UNF flat socket cap screw suitable for countersunk holes in light industrial assemblies, mechanical fixtures, and OEM equipment panels requiring ASME/ANSI B18.3 dimensional compliance.

Installation Notes

Installation requires a Torx Plus T25 driver or bit. Countersink the mating hole to an 82-degree included angle to achieve proper head seating. Torque to the fastener manufacturer or assembly specification appropriate for the alloy steel grade and thread size. Avoid over-torquing, which can strip the UNF threads or fracture the fastener in thin-material applications.
