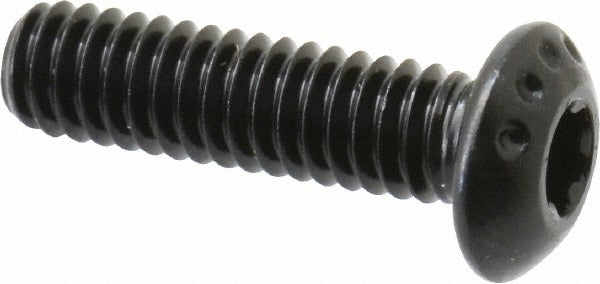

Value Collection 353-5810-01 Button Socket Cap Screw 8-32

Product Description

The VALUE COLLECTION 353-5810-01 is a fully threaded button socket cap screw engineered for applications where a low-profile head and high tensile strength are required. Built from alloy steel with a black oxide finish, it provides moderate corrosion resistance and reduces light reflection in finished assemblies. The screw uses a Torx Plus IP15 drive, which delivers better torque transfer and reduced cam-out compared to a standard hex socket. Thread size is 8-32 UNC-3A with a right-hand thread direction, and the length under the head is 5/8 inch. Hardness is rated at 39 to 44 HRC. It meets ANSI/ASME B18.3 and ASTM F835 standards. Licensed trade and industrial assembly technicians install this fastener in panel, bracket, and enclosure work.

This screw is suited for light-duty mechanical assemblies where a flush or near-flush head profile is needed and where a Torx Plus drive is specified. Common applications include electrical enclosure assembly, HVAC equipment panels, control box fabrication, and general industrial fastening. The black oxide coating blends with painted or dark anodized surfaces and adds a layer of mild corrosion protection for indoor and sheltered environments. Minimum order quantity is 100 pieces, making this screw practical for shop stock and production runs.

Key Features

• Torx Plus IP15 drive for improved torque transfer and reduced cam-out
• Alloy steel construction with 39 to 44 HRC hardness rating
• Black oxide finish for mild corrosion resistance and low-glare appearance
• Fully threaded 8-32 UNC-3A right-hand thread for maximum thread engagement
• Meets ANSI/ASME B18.3 and ASTM F835 fastener standards
• Low-profile button head design for flush or near-flush installations

Compatibility

Designed as a standard 8-32 UNC fully threaded button socket cap screw compatible with any tapped hole or threaded insert meeting 8-32 UNC-3A thread specifications.

Installation Notes

Installation requires a Torx Plus IP15 driver bit. Use the correct driver to avoid stripping the drive recess. Verify the mating thread is 8-32 UNC before installation. Always torque to the specification called out in the assembly drawing or engineering documentation, as this prompt does not supply a torque value for this fastener.
