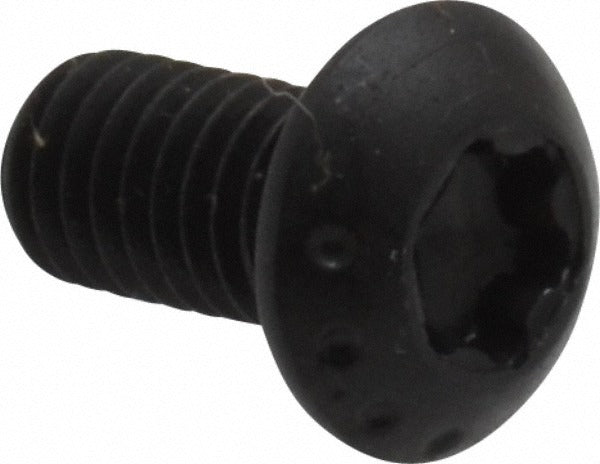

Value Collection 353-2306-01 Button Socket Cap Screw 10-32

Product Description

The VALUE COLLECTION 353-2306-01 is a 10-32 x 3/8 inch button socket cap screw made from alloy steel with a black oxide finish. It features a Torx Plus IP25 drive and is fully threaded with a right-hand thread direction conforming to UNRF thread standards. The button-style head profile sits low against the mating surface, making it well suited for applications where a flush or near-flush fastener is required. Hardness is rated at 39 to 44 HRC, meeting ANSI/ASME B18.3 and ASTM F835 standards. Licensed tradespeople, maintenance technicians, and mechanical assemblers use this fastener in light machinery, panel assemblies, and precision equipment builds.

This screw is used in applications where a low-profile head and high-strength alloy construction are both necessary. The black oxide coating provides a degree of corrosion resistance and reduces light reflection, which is useful in optical, electronic, and mechanical enclosure assemblies. It is appropriate for residential and commercial equipment maintenance, OEM assembly, and field repair work where 10-32 thread size is specified.

Key Features

• 10-32 thread size, fully threaded, 3/8 inch length under head
• Torx Plus IP25 drive for improved torque transfer and reduced cam-out
• Alloy steel construction with 39 to 44 HRC hardness rating
• Black oxide coating for mild corrosion resistance and low-reflectance appearance
• Right-hand thread with Class 3A fit for precise thread engagement
• Meets ANSI/ASME B18.3 and ASTM F835 fastener standards

Compatibility

Designed as a standard 10-32 UNRF button socket cap screw suitable for use in any assembly or equipment requiring this thread size, head style, and Torx Plus IP25 drive configuration.

Installation Notes

Installation requires a Torx Plus IP25 driver; do not substitute a standard Torx T25 bit, as the Torx Plus profile differs and improper tooling can damage the drive recess. De-energize or lock out equipment before servicing fastened assemblies in electrical or mechanical systems. Torque to the value specified in the equipment service documentation, as no torque specification is provided with this fastener alone. Inspect mating threads for damage or contamination before installation.
