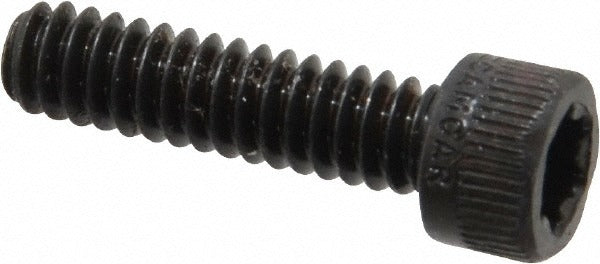

Value Collection 350-0312-61 10-24 X 3/4 in Socket Cap Screw

Product Description

The VALUE COLLECTION 350-0312-61 is a 10-24 x 3/4 inch socket cap head machine screw designed for precision fastening applications where a low-profile, high-strength connection is required. Manufactured from alloy steel with a black oxide finish, this screw offers improved corrosion resistance and reduced light glare in exposed assemblies. The Torx drive style, specifically a T27 drive size, allows higher torque transfer with reduced cam-out risk compared to hex or Phillips drive types. It is fully threaded along the shank length, providing maximum thread engagement across the full 3/4 inch grip. Installers in mechanical, electrical, and industrial assembly work will find this fastener suited to close-tolerance applications where a secure, repeatable torque is critical.

This screw is suited for use in light industrial assembly, machine building, electrical enclosures, and general metalworking applications. The 10-24 thread series is a common coarse-thread standard found across a wide range of metal fabrication and OEM equipment contexts. The black oxide finish makes it appropriate for applications requiring a non-reflective or mildly corrosion-resistant fastener in indoor or protected environments. Sold individually as a single-piece package quantity, with a minimum order quantity of 100 pieces per order.

Key Features

• 10-24 thread size, fully threaded along the entire shank
• 3/4 inch length under head for consistent grip depth
• Socket cap head with T27 Torx drive for high torque transfer and reduced cam-out
• Alloy steel construction for elevated shear and tensile strength
• Black oxide finish provides mild corrosion resistance and low-glare appearance
• Conforms to ANSI B18.3, ANSI B18.8.2, ANSI B2.2, and MS16555 standards

Compatibility

Designed as a standard 10-24 socket cap machine screw compatible with any application calling for ANSI B18.3 or MS16555 compliant fasteners in alloy steel with a Torx drive.

Installation Notes

Installation requires a T27 Torx driver or bit rated for the expected torque load. Always ensure the mating threaded hole or nut is clean and free of debris before driving the screw. Power down or de-energize any equipment before fastener installation in electrical or control enclosures. Follow applicable torque guidelines from the equipment manufacturer or relevant ASME or ANSI fastener standards for the specific assembly.
