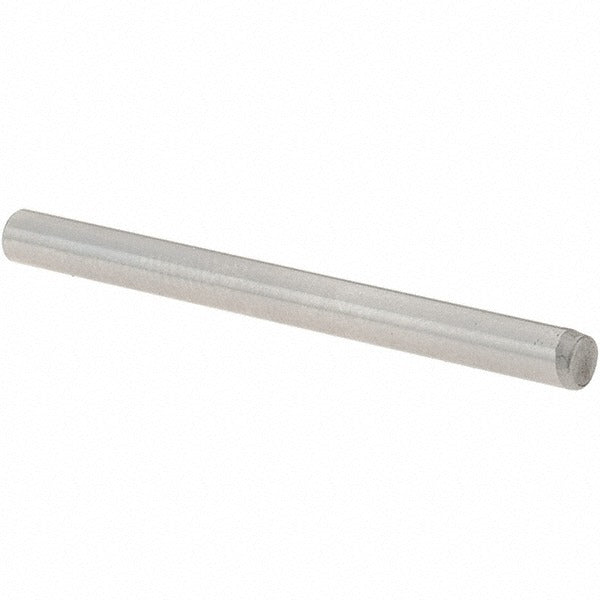

Value Collection 34874 Pull Out Dowel Pin 1/8x1.5in Alloy Steel

Product Description

The VALUE COLLECTION 34874 is a standard pull out dowel pin designed for precise locating and alignment applications in mechanical assemblies. Machined from alloy steel to Material Grade 8, this pin measures 1/8 inch in diameter and 1.5 inches in overall length. It features one beveled end and one rounded end, conforming to ASME B18.8.2 dimensional standards. The Rockwell C 50-58 hardness range gives it the wear resistance and shear strength needed in demanding production and maintenance environments. Machinists, millwrights, and maintenance technicians install these pins to hold mating components in repeatable position during assembly and disassembly cycles.

This dowel pin is suited for use in jigs, fixtures, dies, and machine frames where controlled alignment between mating bores is required. The pull out design with a beveled lead end simplifies extraction without damaging the bore or the mating part. It is applicable in general industrial, tooling, and equipment-maintenance settings, both in production shops and field repair scenarios. Sold in packages of 25 units, making it practical for bench stock or kit replenishment.

Key Features

• One beveled end and one rounded end for controlled insertion and pull-out extraction
• Alloy steel construction, Material Grade 8, for high shear strength and hardness
• Rockwell C 50-58 hardness for wear resistance in repeating-cycle applications
• Diameter tolerance of 0.0002 inches for precise bore fitment
• Conforms to ASME B18.8.2 for dimensional consistency and interchangeability
• Package quantity of 25 pins per unit for bench stock convenience

Compatibility

Designed as an OEM-style replacement or standard-stock dowel pin for any mechanical assembly or tooling application requiring a 1/8 inch diameter, 1.5 inch length pull out pin conforming to ASME B18.8.2.

Installation Notes

Installation is typically performed by machinists or millwrights using a pin press or soft-faced mallet to seat the pin into a reamed bore. Ensure mating bores are clean, deburred, and within tolerance before installation. Power down and de-energize any equipment before servicing assemblies that contain locating pins. Use a pull-out tool or slide hammer against the beveled end for removal to avoid bore damage.
