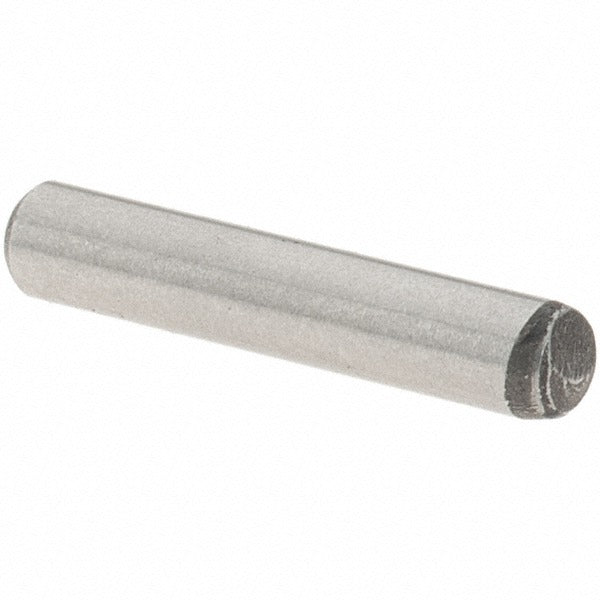

Value Collection 34864 Pull Out Dowel Pin 3/32x1/2 in Alloy Steel

Product Description

The VALUE COLLECTION 34864 is a standard pull out dowel pin manufactured from alloy steel to Grade 8 specifications. It measures 3/32 inch in diameter and 1/2 inch in overall length, with a one beveled end and one rounded end for guided insertion and controlled extraction. Hardness is rated C 50-58 on the Rockwell scale, providing high resistance to shear and wear in precision alignment applications. This pin conforms to ASME B18.8.2 and is suited for machinists, toolmakers, and maintenance technicians working in manufacturing, fabrication, or machine assembly environments.

Pull out dowel pins are used to align mating components such as jigs, fixtures, dies, and machine bases where repeatable positioning is required. The pull out style — with its beveled lead-in and rounded opposite end — allows the pin to be driven into a reamed hole and later extracted without damaging the bore or the surrounding material. This part is appropriate for light-duty precision assembly in both production and maintenance settings where a removable, reusable locating pin is needed.

Key Features

• Alloy steel construction with Grade 8 material grade for high shear strength
• Rockwell hardness C 50-58 for wear resistance in precision bores
• One beveled end and one rounded end for guided installation and easy pull out
• Diameter tolerance of 0.0002 inches for tight, repeatable fits in reamed holes
• Conforms to ASME B18.8.2 fastener standard
• Double shear breaking strength measurement method

Compatibility

Designed as a standard OEM-style replacement or direct-use locating pin for fixtures, jigs, dies, and machine assemblies requiring a 3/32 inch diameter pull out dowel pin per ASME B18.8.2.

Installation Notes

Installation is typically performed by machinists or maintenance technicians using a reamed hole sized to the pin diameter tolerance. De-energize and lock out all equipment before installing or removing locating pins in active machinery. Use appropriate pin drivers or pullers to avoid bore damage — do not strike the rounded end directly with a hammer. Follow applicable shop standards and fixture design specifications for hole depth and fit class.
