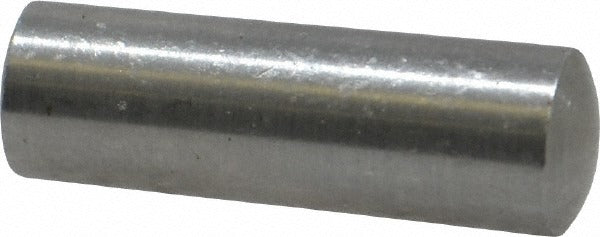

Value Collection 34850X Taper Pin Size 6 1 Inch Steel

Product Description

The VALUE COLLECTION 34850X is a Size 6 taper pin machined from C-12L14 steel in an uncoated finish. Taper pins are precision fasteners used to secure hubs, collars, and gears to shafts, providing a reliable, self-locking connection that resists rotational and axial movement. This pin measures 1 inch overall length with a small end diameter of 0.3202 inches and a large end diameter of 0.341 inches, conforming to ANSI/ASME B18.8.2 dimensional standards. The C-12L14 free-machining steel grade offers good machinability and consistent tolerances, making it a standard choice for general mechanical assemblies across maintenance, manufacturing, and industrial service applications.

Taper pins of this size are commonly used in light to medium-duty mechanical assemblies where a removable, precision-fitting pin is required. Typical applications include shaft-to-hub connections on conveyor components, pump drives, and machine tool fixtures. The Size 6 designation and ANSI/ASME B18.8.2 compliance make this pin interchangeable with other conforming hardware in standard taper-reamed bores. Installation is performed by machinists, millwrights, and maintenance technicians working on rotating equipment and mechanical assemblies.

Key Features

• ANSI/ASME B18.8.2 compliant for standardized fitment in taper-reamed bores
• C-12L14 free-machining steel for consistent dimensional accuracy
• Small end diameter of 0.3202 inches with a minimum tolerance of -0.0007 inches and maximum tolerance of +0.0013 inches
• Large end diameter of 0.341 inches for secure self-locking engagement
• 1 inch overall length suits compact shaft and hub assemblies
• Uncoated finish suitable for standard dry or lightly lubricated environments

Compatibility

Designed as an OEM-style replacement or direct fit for any application requiring a Size 6 taper pin conforming to ANSI/ASME B18.8.2 in a taper-reamed bore.

Installation Notes

Taper pins are typically installed and removed by machinists or maintenance technicians using a properly sized taper pin reamer, a pin punch, and a hammer or press. Always ensure the mating bore is reamed to the correct ANSI/ASME B18.8.2 taper before driving the pin. De-energize and lock out all rotating equipment before installing or removing taper pins per applicable OSHA lockout/tagout procedures. Do not force an oversized pin into an under-reamed bore, as this can crack the hub or distort the shaft.
