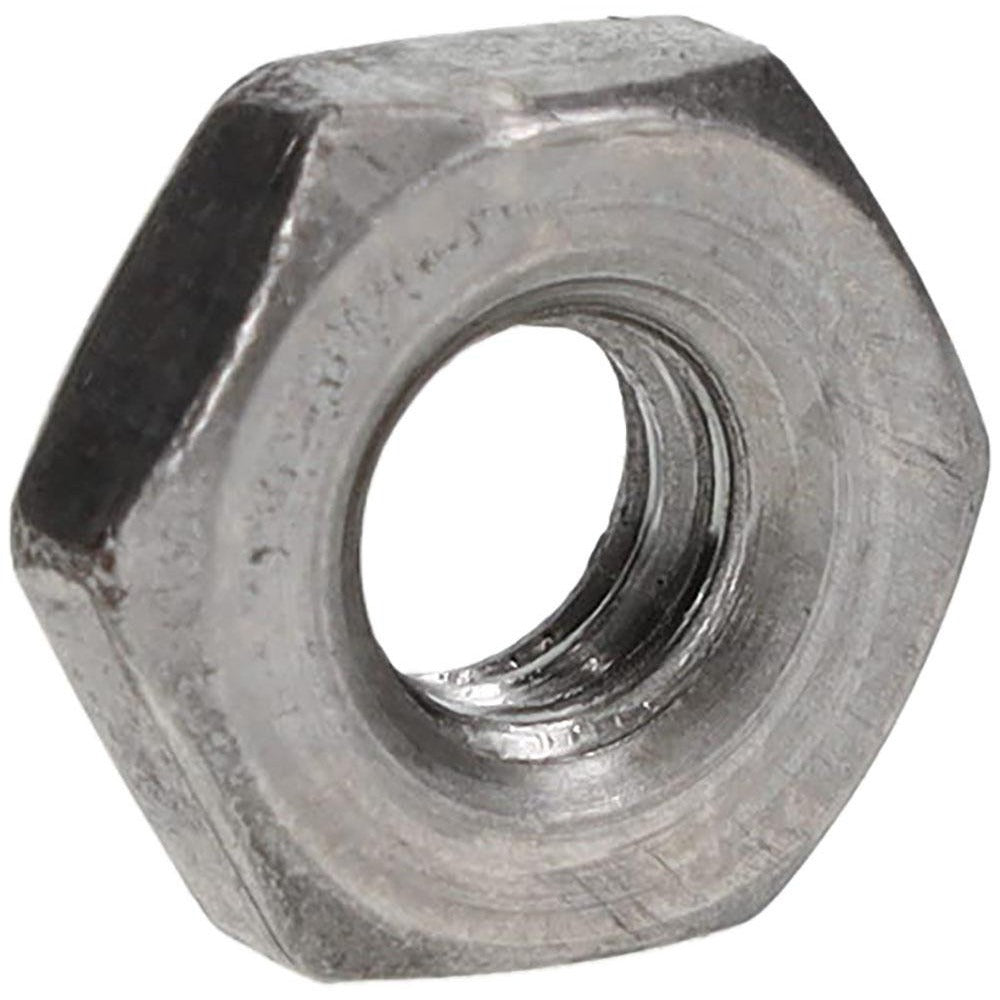

Value Collection 342012 Hex Nut 1/4-20 Grade 2 Steel Unc

Product Description

The VALUE COLLECTION 342012 is a 1/4-20 hex nut manufactured from Grade 2 steel with a bright, uncoated finish. It features a right-hand thread in the UNC (Unified National Coarse) standard and carries a 2B thread fit class, making it a general-purpose fastener suited for a wide range of mechanical and structural assemblies. Width across flats measures 0.5 inches, and height is 11/64 inches. Hardness is rated between 68 HRB and 32 HRC. This nut is installed by electricians, plumbers, HVAC technicians, pipefitters, and general contractors wherever a standard 1/4-20 threaded connection is required.

This hex nut is appropriate for residential and light commercial applications including equipment mounting, conduit support, pipe hanger assemblies, panel fabrication, and general mechanical fastening. Its uncoated finish is suitable for dry indoor environments or applications where a finish coating is not required. The Grade 2 steel construction meets ASME B1.1 and ASME B18.2.2 standards, confirming dimensional and mechanical compliance for standard service conditions.

Key Features

• 1/4-20 UNC right-hand thread with 2B fit class for standard tolerance mating
• Grade 2 steel construction meeting ASME B1.1 and ASME B18.2.2
• Width across flats: 0.5 inches — accepts standard 7/16-inch wrench or socket
• Height: 11/64 inches for compact low-profile fastening
• Hardness range: 68 HRB to 32 HRC for general-purpose load applications
• Bright uncoated finish — no added plating or treatment

Compatibility

Designed for use with any 1/4-20 UNC externally threaded fastener, bolt, or stud conforming to ASME B1.1 dimensional standards.

Installation Notes

Installation requires a standard 7/16-inch open-end wrench, box wrench, or socket. Ensure the mating bolt or stud is clean and free of debris before threading. Do not exceed the load rating appropriate for Grade 2 steel in structural or safety-critical applications where Grade 5 or Grade 8 hardware may be specified. Follow applicable codes and engineering specifications for the assembly in which this fastener is used.
