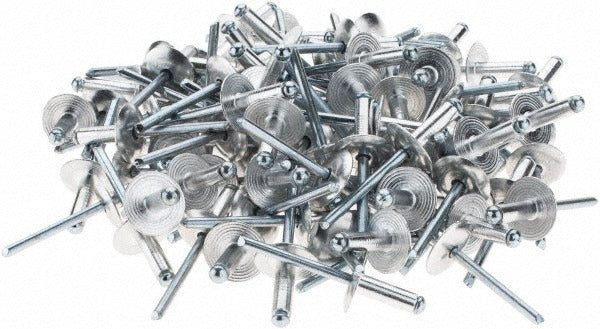

Value Collection 34142 Open End Blind Rivet Size 66 100 Pack

Product Description

The VALUE COLLECTION 34142 is an open end blind rivet designed for fastening applications where access is limited to one side of the workpiece. The aluminum body pairs with a steel mandrel to deliver reliable clamping force across a wide grip range of 0.251 to 0.375 inches. The large flange dome head measures 5/8 inches in diameter, distributing load across the material surface to reduce pull-through risk. With a tensile strength of 500 pounds and a shear strength of 380 pounds, this rivet is suited for structural and general-purpose assemblies in sheet metal, light fabrication, and panel work. Each package contains 100 rivets. Installation is handled by licensed tradespeople or experienced fabricators using a standard blind rivet tool.

This rivet fits applications in HVAC ductwork fabrication, electrical enclosure assembly, plumbing panel work, and general sheet metal joining where a conventional bolt or screw is impractical. The 3/16-inch body diameter requires a drilled or punched hole sized between 0.192 and 0.196 inches (wire gauge number 11). The bright finish on the aluminum body and phosphate finish on the steel mandrel provide basic corrosion and oxidation resistance for indoor and light-duty outdoor environments.

Key Features

• Open end design allows one-sided installation with a standard rivet gun
• Large flange dome head (5/8 inch diameter) reduces pull-through on thin or soft materials
• Aluminum body (5056 alloy) with steel mandrel for strength and lightweight installation
• Tensile strength of 500 pounds and shear strength of 380 pounds
• Grip range of 0.251 to 0.375 inches accommodates variable material stack thicknesses
• Bright rivet finish and phosphate mandrel finish for corrosion resistance

Compatibility

Designed as a standard open end blind rivet for use with any manual or pneumatic blind rivet tool that accepts 3/16-inch body diameter rivets requiring a number 11 drill size hole.

Installation Notes

Installation is performed with a hand-operated or pneumatic blind rivet tool rated for 3/16-inch rivets. Drill or punch the workpiece to a hole diameter between 0.192 and 0.196 inches before inserting the rivet. Insert the rivet body fully into the hole, then actuate the tool to pull and break the mandrel. Do not attempt to reuse a set rivet or reinstall a rivet after the mandrel has been broken.
