Value Collection 34120 Open End Blind Rivet Size 64 100 Pack

Product Description

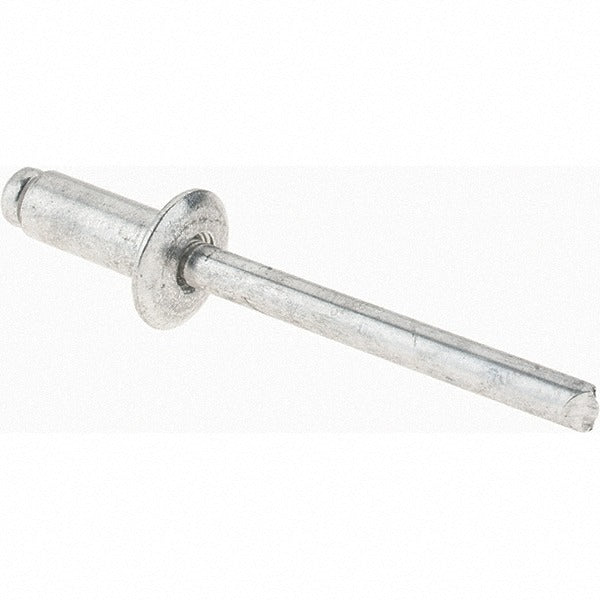

The VALUE COLLECTION 34120 is a Size 64 open end blind rivet with a dome head, aluminum body, and aluminum mandrel. Designed for one-sided fastening applications, this rivet installs where access to the back of the workpiece is limited or impossible. The body diameter is 3/16 inches and the head diameter is 3/8 inches. It accommodates a grip range of 0.188 to 0.250 inches and requires a drilled or punched hole in the range of 0.192 to 0.198 inches. With a tensile strength of 320 pounds and a shear strength of 260 pounds, it is suited for light structural and sheet metal assembly work. It meets IFI 114 Grade 11 standards and is manufactured from 5052-series aluminum alloy.

This rivet is commonly used in sheet metal fabrication, HVAC ductwork assembly, enclosure manufacturing, signage installation, and general industrial assembly. The aluminum-on-aluminum construction makes it a practical choice for applications requiring corrosion resistance or where dissimilar metal contact must be minimized. It is well-suited for residential and light commercial mechanical installations where a clean, low-profile dome head is needed. Sold in a package quantity of 100 pieces, it is appropriate for ongoing service work or production use by HVAC technicians, sheet metal workers, and general contractors.

Key Features

• Open end blind rivet design allows installation from one side of the workpiece
• Dome head profile with a head height of 0.060 inches provides a flush, finished appearance
• 5052 aluminum alloy body and mandrel offer corrosion resistance and light weight
• Tensile strength of 320 pounds and shear strength of 260 pounds for reliable fastening
• Meets IFI 114 Grade 11 fastener standard
• Sold in a 100-piece package to support production and service volume needs

Compatibility

Designed as a standard Size 64 open end blind rivet compatible with materials requiring a hole diameter between 0.192 and 0.198 inches and a grip range of 0.188 to 0.250 inches. Suitable for use with standard blind rivet installation tools accepting 3/16-inch body rivets.

Installation Notes

Installation requires a rivet gun or pneumatic rivet tool sized for 3/16-inch body diameter rivets. Drill or punch the workpiece to a hole diameter between 0.192 and 0.198 inches using a wire gauge 11 drill bit. Verify that total material stack thickness falls within the 0.188 to 0.250-inch grip range before selecting this rivet. Ensure all mating surfaces are clean and properly aligned before setting the rivet, as blind rivets are not designed to be removed and reused.
