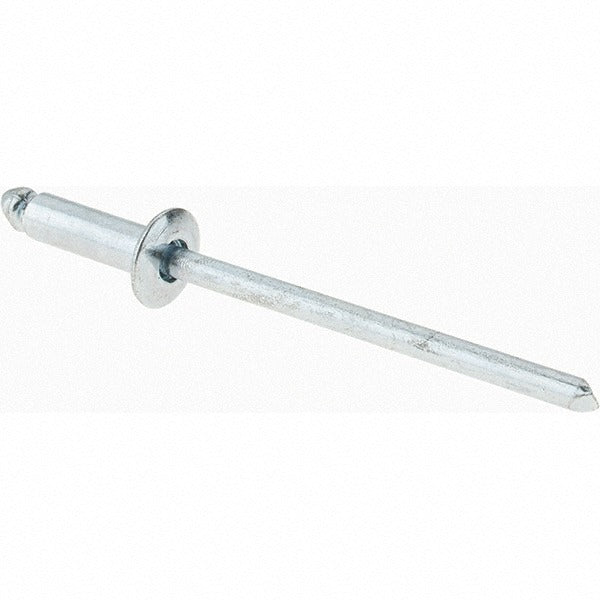

Value Collection 34114 Open End Blind Rivet Size 44 100 Pack

Product Description

The VALUE COLLECTION 34114 is a Size 44 open end blind rivet with a dome head, steel body, and steel mandrel, designed for blind-side fastening applications where only one side of the workpiece is accessible. The body diameter is 0.125 inches with a grip range of 0.188 to 0.250 inches, making it suited for light to medium material stack-ups. The rivet accepts a hole diameter of 0.129 to 0.133 inches and is finished with a phosphate coating on the mandrel for corrosion resistance. Tensile strength is rated at 310 pounds and shear strength at 260 pounds. This rivet is installed by maintenance technicians, sheet metal workers, and general assembly professionals using a standard blind rivet tool.

The 34114 is appropriate for residential and commercial applications involving sheet metal, light steel fabrication, HVAC ductwork assembly, electrical enclosures, and general mechanical assembly. The dome head profile provides a low-profile finished appearance on the visible face of the workpiece. Each package contains 100 rivets, conforming to IFI 114 Grade 30 fastener standards. The drill size equivalent is number 30. These rivets are a practical choice wherever a clean, permanent, blind fastener is required in steel-to-steel or mixed-material joints.

Key Features

• Open end design allows standard blind installation from one side of the workpiece
• Steel body and steel mandrel with phosphate finish on mandrel for corrosion resistance
• Tensile strength of 310 pounds and shear strength of 260 pounds
• Grip range of 0.188 to 0.250 inches suits varied material thicknesses
• Conforms to IFI 114 Grade 30 fastener standard
• Packaged in quantities of 100 for job-site and shop use

Compatibility

Designed as an OEM-style open end blind rivet for use in standard Size 44 rivet applications requiring a 0.129 to 0.133 inch hole diameter and a grip range of 0.188 to 0.250 inches in steel or compatible substrates.

Installation Notes

Install using a hand-operated or pneumatic blind rivet tool sized for 0.125-inch body diameter rivets. Drill the receiving hole to the specified diameter range of 0.129 to 0.133 inches using a number 30 drill bit before installation. Ensure all material surfaces are clean and properly aligned before setting the rivet, as blind rivets form a permanent joint and cannot be removed without drilling out. Follow applicable shop safety practices and eye protection requirements when operating rivet tools.
