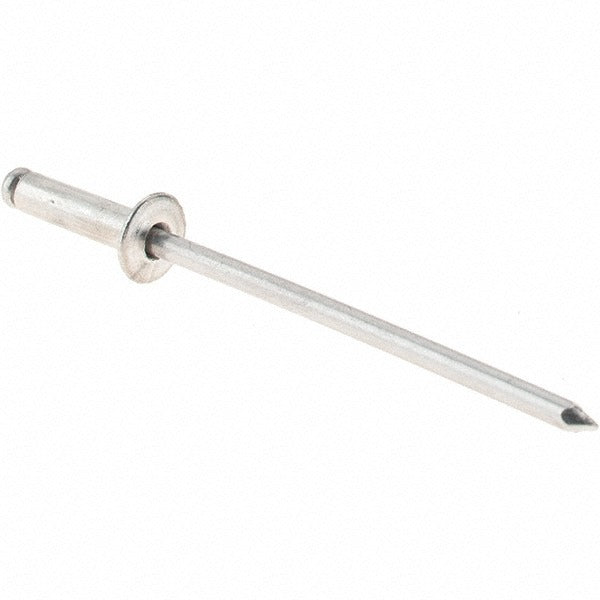

Value Collection 34105 Open End Blind Rivet Size 34 100 Pack

Product Description

The VALUE COLLECTION 34105 is an open end blind rivet with a dome head, designed for fastening applications where access is limited to one side of the workpiece. The body and mandrel are both aluminum, giving the fastener good corrosion resistance and light weight. The body diameter is 0.0938 inches (3/32 inch) with a head diameter of 0.188 inches. Grip range runs from 0.126 inches minimum to 0.250 inches maximum, and length under head is 0.375 inches (3/8 inch). Tensile strength is rated at 120 pounds and shear strength at 80 pounds. This rivet meets IFI 114 Grade 11 standards. Sold in a pack of 100.

This rivet suits a wide range of light-duty assembly and fabrication tasks found in HVAC, sheet metal, electrical enclosures, and general industrial or maintenance work. The open end design allows the mandrel stem to pass through, making installation fast with a standard hand or pneumatic rivet tool. The dome head provides a low-profile, finished appearance on the visible face of the joint. The 0.097 to 0.100 inch hole diameter requirement corresponds to a No. 41 drill size, making hole prep straightforward in the field.

Key Features

• Open end blind rivet — installs from one side only, no rear access needed
• Dome head style with 0.188 inch head diameter and 0.032 inch head height
• Aluminum body and aluminum mandrel for corrosion resistance and light weight
• Grip range: 0.126 to 0.250 inches to accommodate varying material stack thicknesses
• Tensile strength 120 pounds, shear strength 80 pounds per IFI 114 Grade 11
• Bright finish; compatible with No. 41 drill size hole prep
• Sold as a 100-piece pack with minimum order of 1 pack

Compatibility

Designed as a standard open end blind rivet suitable for use in sheet metal, HVAC panel, electrical enclosure, and general light fabrication applications requiring a 3/32 inch body diameter dome head rivet meeting IFI 114 Grade 11.

Installation Notes

Installation requires a hand or pneumatic blind rivet tool sized for a 3/32 inch rivet body. Drill the workpiece to a hole diameter between 0.097 and 0.100 inches using a No. 41 drill bit before setting the rivet. Ensure material stack thickness falls within the 0.126 to 0.250 inch grip range before selecting this rivet for the joint. Follow applicable structural and safety guidelines for the specific assembly; do not substitute this fastener in load-critical joints without verifying tensile and shear requirements against design specs.
