Value Collection -33654-1 Hex Socket Cap Screw 7/16-14

Product Description

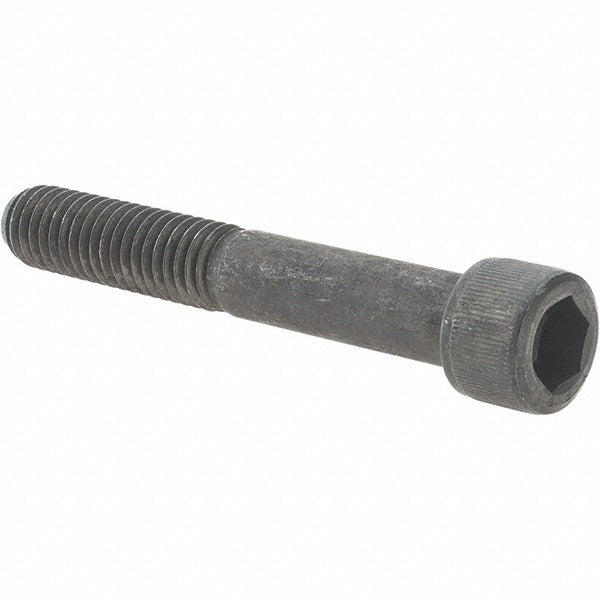

The VALUE COLLECTION -33654-1 is a hex socket cap screw designed for fastening applications requiring a recessed drive interface and high tensile strength. Manufactured from alloy steel with a black oxide coating, this screw measures 3 inches in length under the head and features a 7/16-14 UNC thread form with partial threading. The 3/8-inch hex drive socket accepts a standard hex key or Allen wrench. Black oxide finish provides mild corrosion resistance and reduces surface reflectivity. This fastener meets ASME/ANSI B18.3 and ASTM A574 standards, making it appropriate for structural and mechanical assemblies in industrial and commercial settings.

This socket cap screw is suited for bolted joint applications in machinery, fixtures, tooling, and general mechanical assemblies where a flush or recessed fastener head is required. The 7/16-14 UNC coarse thread pitch provides strong thread engagement in steel, cast iron, and similar ferrous materials. Partially threaded geometry allows for clamp-load applications where the unthreaded shank bears shear forces. Installers working in fabrication shops, maintenance environments, and industrial production will find this a standard-fit fastener for many common bolted connections.

Key Features

• 7/16-14 UNC coarse thread for strong engagement in ferrous base materials
• 3 inches length under head with partial threading for combined tensile and shear load applications
• 3/8-inch hex drive socket compatible with standard hex keys and socket drivers
• Alloy steel construction for high tensile strength per ASTM A574
• Black oxide coating for mild corrosion resistance and low-glare finish
• Compliant with ASME/ANSI B18.3 dimensional standards

Compatibility

Designed as a standard 7/16-14 UNC hex socket cap screw for use in any application requiring ASME/ANSI B18.3 compliant alloy steel socket cap fasteners with a 3/8-inch hex drive.

Installation Notes

Installation should be performed by a qualified mechanic or maintenance technician using a properly sized 3/8-inch hex key or socket driver. Ensure the mating threaded hole is clean and free of debris before installation. Do not exceed the rated torque range for 7/16-14 alloy steel fasteners as specified by the applicable engineering standard or equipment manufacturer. Apply thread lubricant or thread-locking compound only as directed by the assembly specification.
