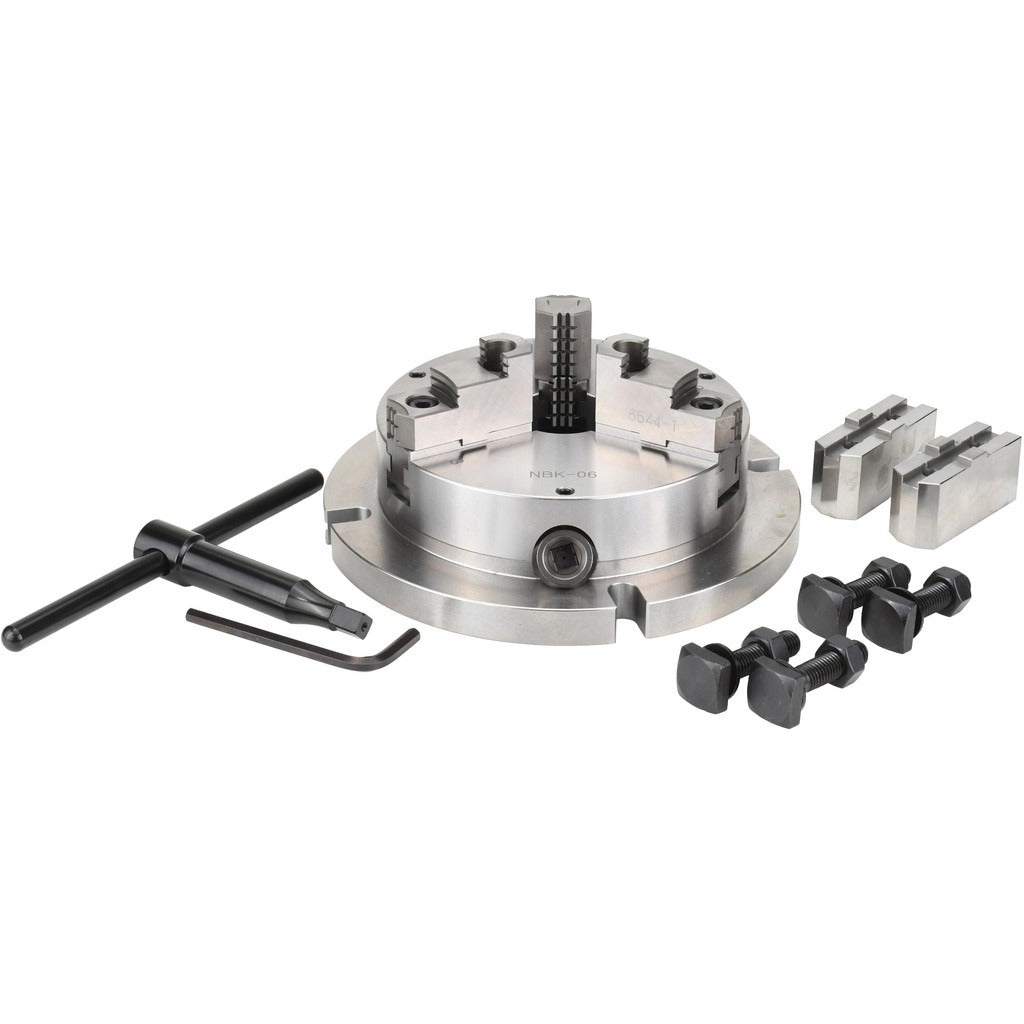

Value Collection 333.12400312 Low Profile Machining Chuck

Product Description

The VALUE COLLECTION 333.12400312 is a low profile machining chuck designed for use on CNC lathes, turning centers, and other precision workholding setups. With a 6-inch (152.4mm) chuck diameter and an overall height of 24mm, this chuck offers a compact, space-saving footprint without sacrificing grip range. Internal chucking diameter spans 8mm to 160mm, giving machinists flexibility across a wide range of bore sizes. At 29 pounds, it is a substantial, rigid workholding unit suited for production and job-shop environments. This chuck is typically installed and set up by a machinist or toolroom technician familiar with lathe chuck mounting procedures.

This low profile chuck is intended for internal chucking applications on manual or CNC lathes and turning centers. Its wide internal chucking range, from 8mm minimum to 160mm maximum, makes it appropriate for both small-bore and larger-diameter workpieces in a single chuck setup. The reduced overall height of 24mm is particularly useful in applications where clearance between the chuck face and tooling or tailstock is limited, such as in short-bed or gang-tooling configurations common in production turning.

Key Features

• 6-inch (152.4mm) chuck diameter for medium-capacity turning applications
• Low profile design with 24mm overall height reduces interference in tight setups
• Internal chucking range of 8mm to 160mm supports a broad variety of workpiece bore sizes
• Weighs 29 pounds, indicating a robust, rigid construction for stable workholding
• Sold individually as a single unit (package quantity of 1)

Compatibility

Designed as an OEM-style replacement or direct-fit workholding chuck for lathes and turning centers that accept a 6-inch chuck mounting configuration.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Before mounting or removing a chuck, power down the lathe and engage all machine locks per the equipment manufacturer's guidelines. Verify that the spindle nose type and bolt-circle pattern of the machine match the chuck mounting requirements before installation. Inspect chuck jaws and mounting surfaces for debris or damage prior to use.
