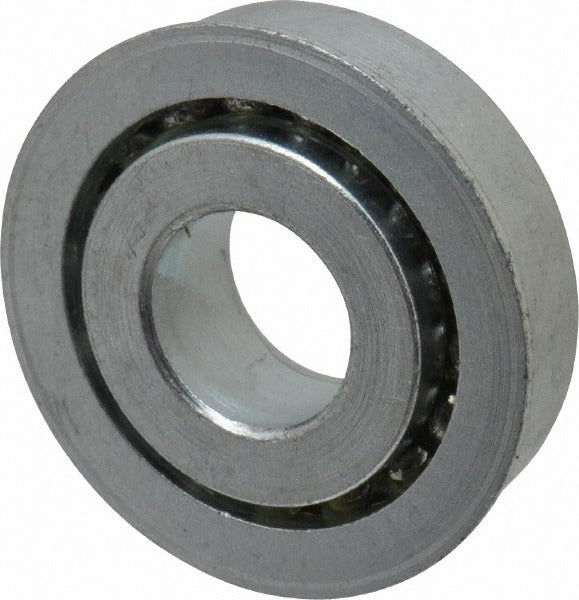

Value Collection 33207-01 Deep Groove Ball Bearing

Product Description

The VALUE COLLECTION 33207-01 is an open-style, unground full complement deep groove ball bearing designed for light to moderate radial load applications in mechanical and industrial equipment. The bearing features a round bore with a 0.75-inch bore diameter and a flanged outer ring with a 2-inch flange outside diameter, allowing it to seat positively against a housing shoulder without additional retention hardware. The inner ring width is 0.5625 inches, and the carbon steel housing provides adequate strength for general-purpose rotating assemblies. Single-row construction keeps the profile compact. No snap ring is included. Typical installers include millwrights, maintenance technicians, and equipment repair professionals.

This bearing is suited for residential and light commercial mechanical assemblies where a flanged, open deep groove ball bearing with a 0.75-inch bore is required. The open design allows for external lubrication during service intervals and is appropriate in environments where contamination is controlled. The maximum rated speed is 1,500 RPM, making it appropriate for lower-speed drive shafts, conveyor rollers, fan assemblies, and similar rotating equipment. The flange width of 0.0625 inches provides a low-profile retention lip that fits into standard flanged housing bores.

Key Features

• Flanged outer ring with 2-inch flange outside diameter for positive axial location in housing
• 0.75-inch round bore diameter with 0.5625-inch inner ring width
• Unground full complement construction for maximum load-carrying capacity within the bore envelope
• Open style allows field lubrication and inspection during maintenance
• Carbon steel housing material for general-purpose strength and machinability compatibility
• Rated to 1,500 RPM maximum for controlled-speed rotating assemblies

Compatibility

Designed as a general-purpose OEM-style replacement deep groove ball bearing for mechanical assemblies requiring a flanged, open, single-row bearing with a 0.75-inch round bore.

Installation Notes

Installation should be performed by a qualified millwright or maintenance technician. De-energize and lock out all power to the equipment before removing the existing bearing. Press or drive force should be applied to the ring being fitted — never drive force through the rolling elements. Inspect the housing bore and shaft for wear or damage before seating the replacement bearing.
